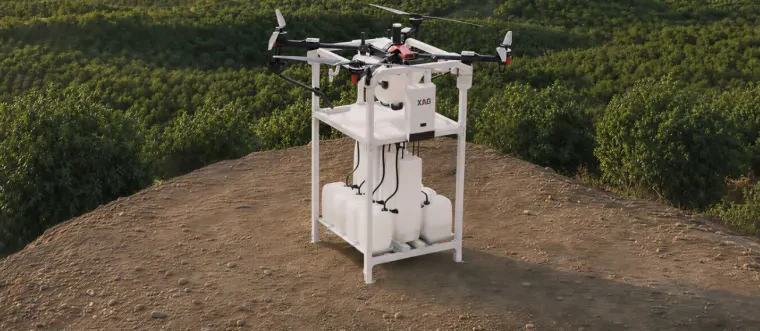

Orchards
A permanent base on the farm for fully automated orchard spraying.
Coming to Canada in 2027X SeriesCrop protection that runs itself, from route to rinse.XAG X Series Agricultural Robot

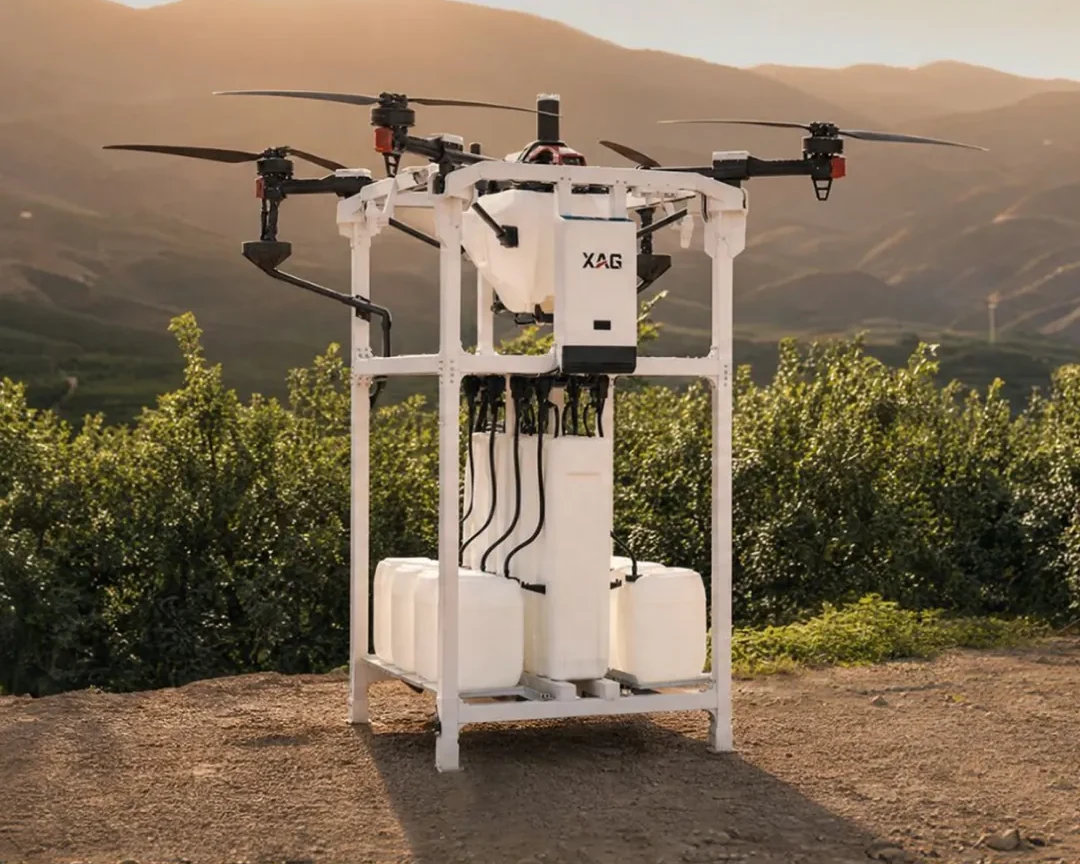

A new era for the smart farm. The XAG X Series pairs an agricultural drone, a self-charging dock and an automatic mixing station, so planning, spraying, refilling, charging and cleaning all happen without you in the field.
- Fastest flash charge⁵
- 2.5 min
- Automatic refill flow
- 60 L/min
- X100 / X150 spray tank
- 50 / 85 L
- Built to stay outdoors
- IPX6K
Coming to Canada in 2027
SkyFlow is bringing the X Series to Canada with XAG.
Before release we are completing three pieces of work together. Preorder now to hold your place, or join the waitlist to see it fly first.
- 01
Localization
Adapting the system, apps and documentation for Canadian farms, power supply and English and French users.
In progress - 02
Field testing
Testing the drone, dock and station in Canadian crops, weather and seasons before release.
In progress - 03
Legal review
Working through Canadian regulatory, certification and product-liability requirements with XAG.
In progress
One-stop, fully automated operation.
Three machines, one job. Choose a part of the system to see what it does, then follow the five steps the X Series runs on its own.

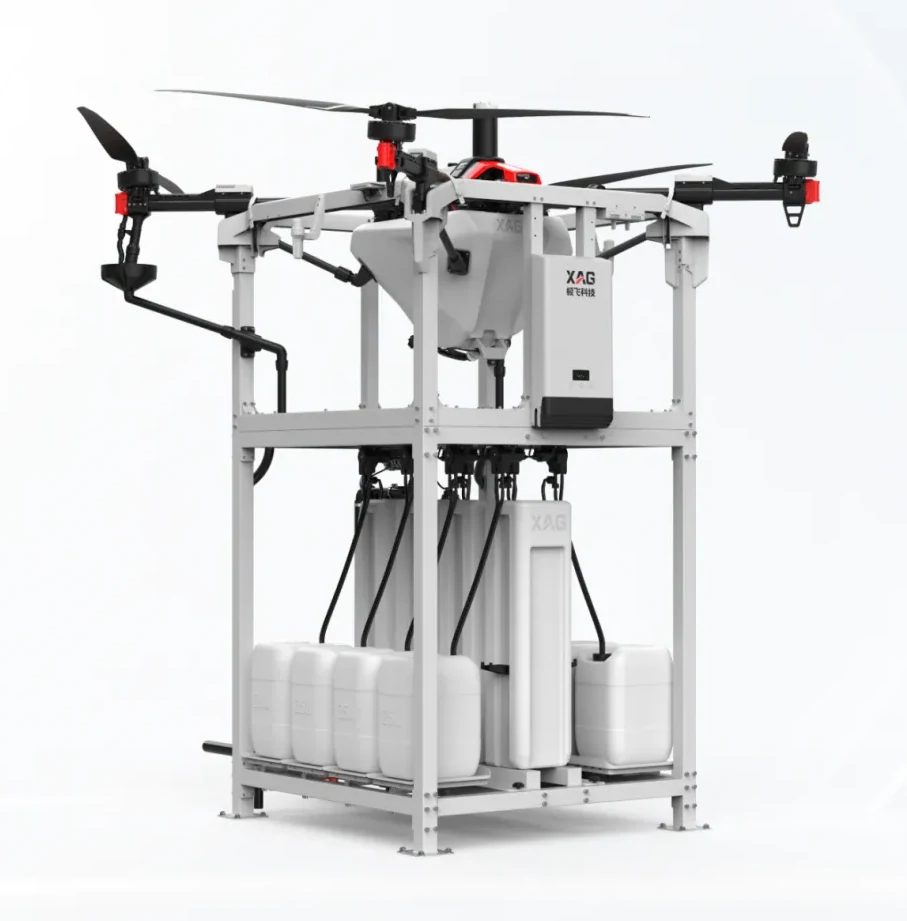

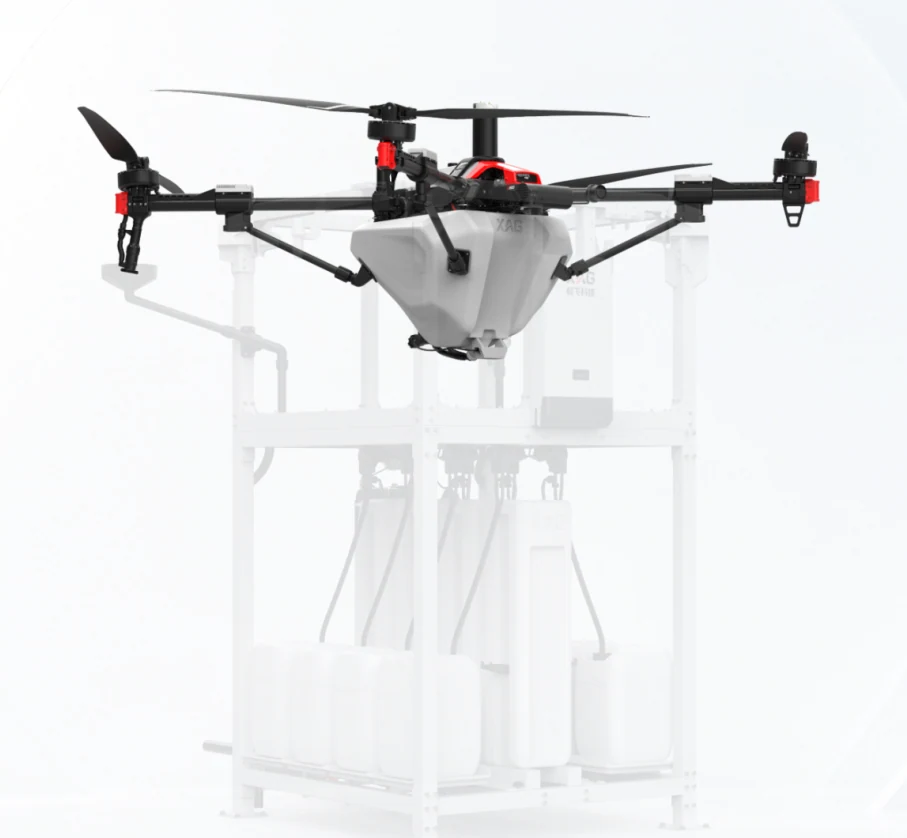

Three machines that work as one
The drone flies the job, the dock lands and charges it, and the station mixes and refills the tank. Nobody needs to be in the field between flights.
- 1Route planning
- 2Flight and spraying
- 3Mixing and refilling
- 4Charging
- 5Cleaning and maintenance
Go enjoy yourself. Leave the field work to it.
Field crops
Fully automated spraying for field crops close to the yard.

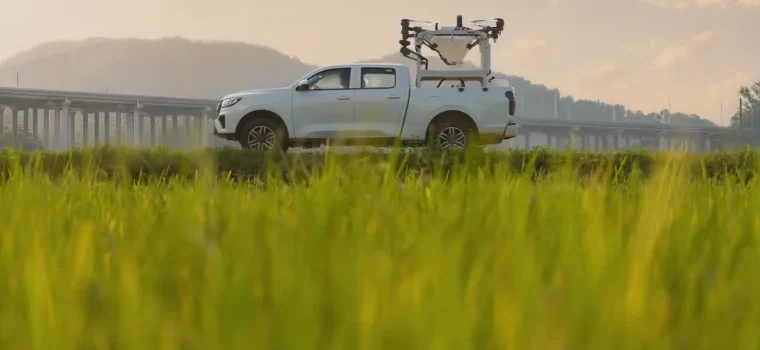

On the move
One person and one truck take the system from field to field.

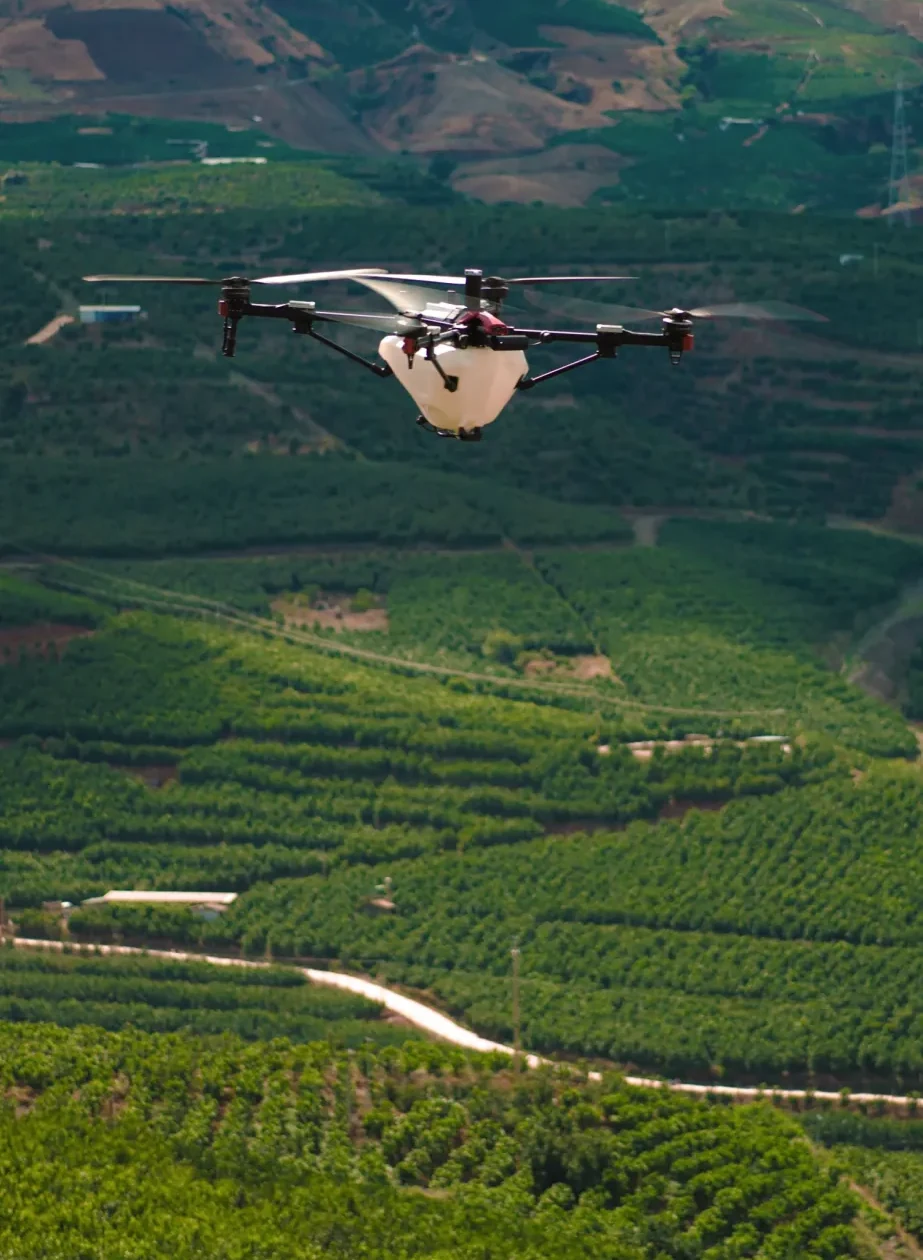

Field patrol
Scout the whole farm without walking it.
Create a plan or pick a saved one, and the X Series builds the best route from a high-resolution map of your field. Autonomous mapping flights stitch images automatically so you always know how the crop is doing.
- Patrol in one tap. Create a patrol task in the app and the drone flies and maps the farm without anyone walking the rows.
- Recharges and resumes. Large patrols continue across charges, picking up where the drone stopped.
- Crop insight at a glance. Stitched high-resolution maps show crop growth and help plan the next job.

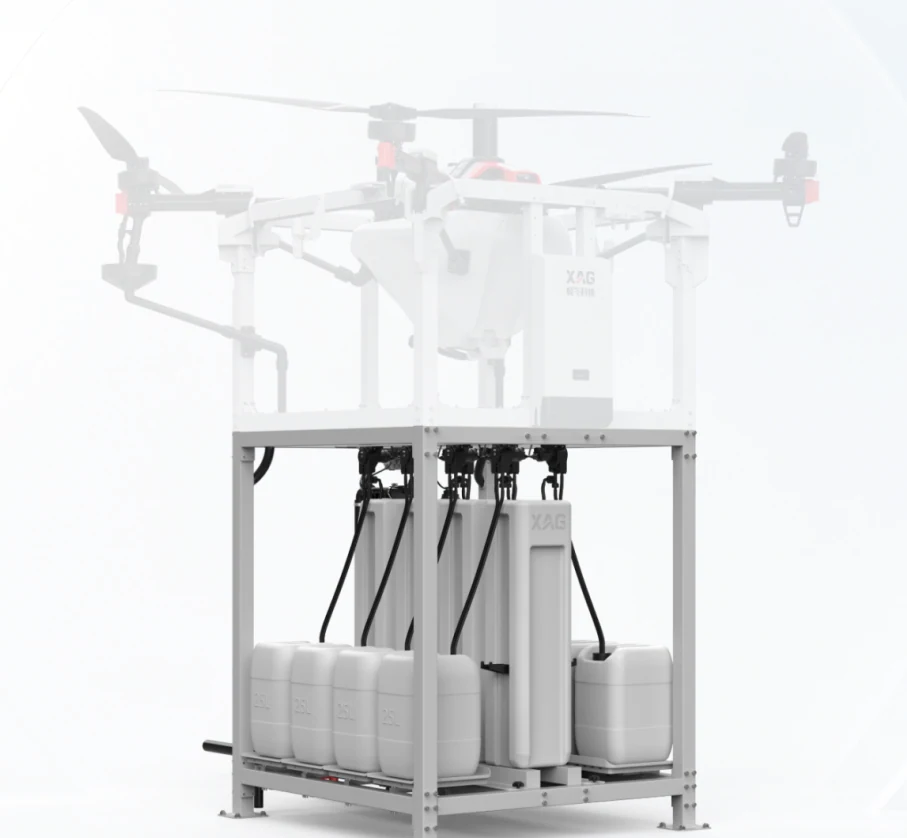

Mixing and refilling, with no hands on the concentrate.
The station mixes, stirs and refills on its own. High-precision load sensors keep every ratio accurate, so operators stay away from chemicals and every tank is right.
- Mixing tank (LM1-190 / LM1-120)
- 190 / 120 L
- Maximum refill flow
- 60 L/min

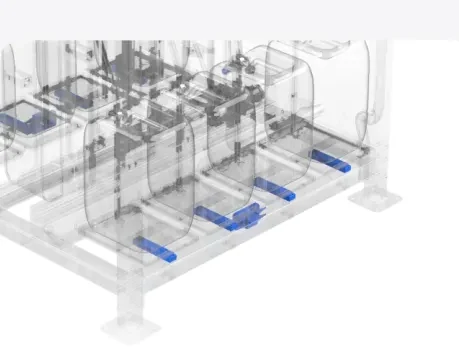

Precise mixing
Combine several concentrate jugs per plan. Load sensors weigh each product in real time.

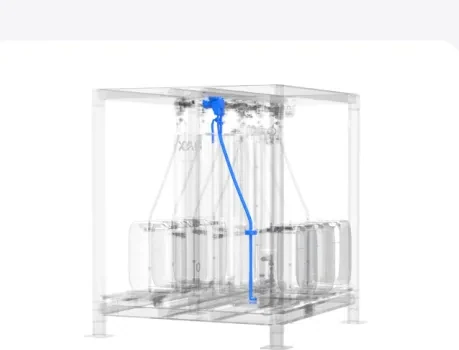

Automatic stirring
Dual-channel suction lines and a self-stirring pump keep the mix even and stop settling.

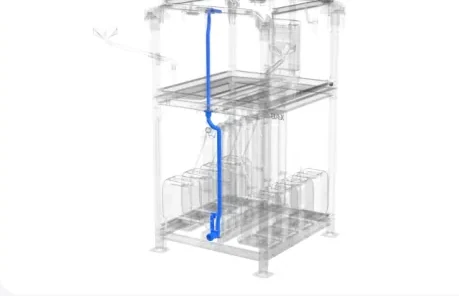

Fast refilling
Up to 60 L/min refill flow, so the drone is turned around quickly after it lands.

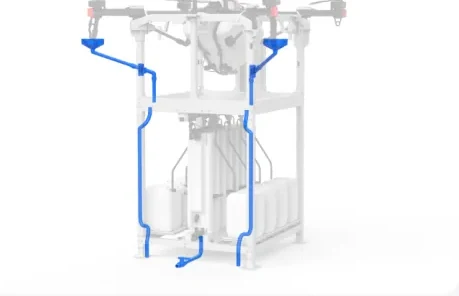

One-tap cleaning
Water circulation flushes lines and tank. Waste liquid is collected for proper disposal.¹
Precise coverage in orchards and fields.
Centrifugal nozzles atomize finely and evenly even at high flow, so pests, disease and weeds have nowhere to hide. Every plan is flown autonomously and recorded.
- Centrifugal droplet size²
- 50–500 μm
- Effective spray width³
- 5–10 m
- Maximum spray flow
- 42 L/min

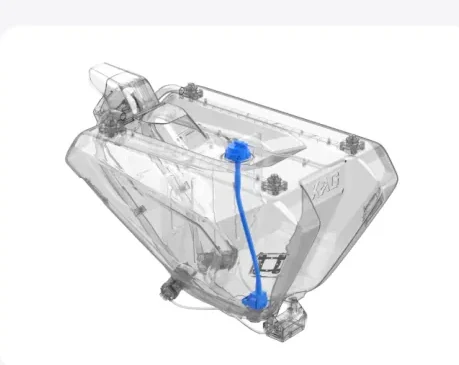

Smart spray tank
Low-drag shape for smoother flight, with a built-in level gauge for remaining liquid.

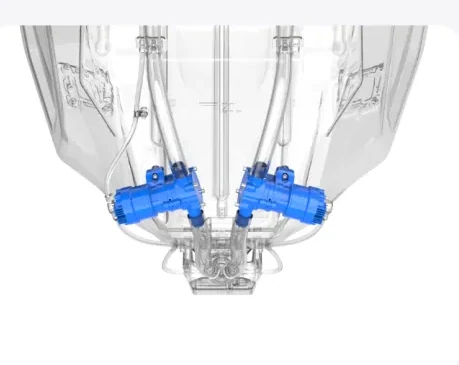

High-flow impeller pumps
Up to 21 L/min per pump and a service life over 500 hours.⁴

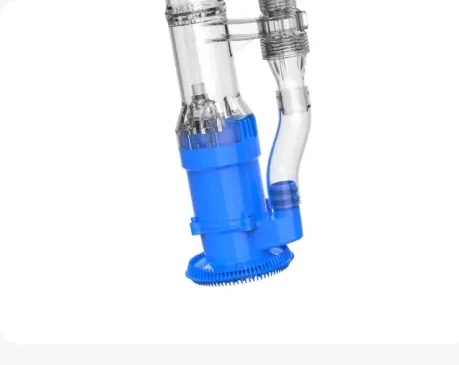

Smart centrifugal nozzles
A high-performance motor and disc give fine, even droplets even at high flow.

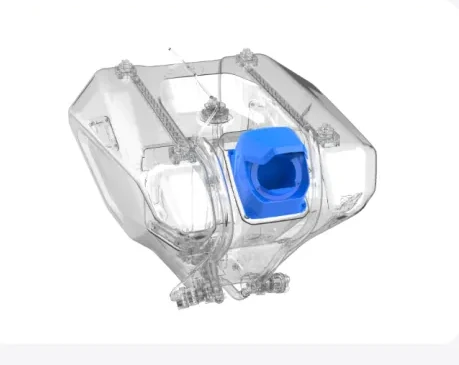

Anti-spill refill port
A flip-lid check valve stops surges and spills and keeps leaves and debris out.
Flash charging
Charged in 2.5 minutes. Full in 3.5.⁵
Charging starts the moment the drone lands. No battery swaps and no waiting between flights, so the system keeps cycling through frequent, demanding jobs.
- Usable charge⁵
- 2.5 min
- Full charge⁵
- 3.5 min
- Battery swaps
- 0

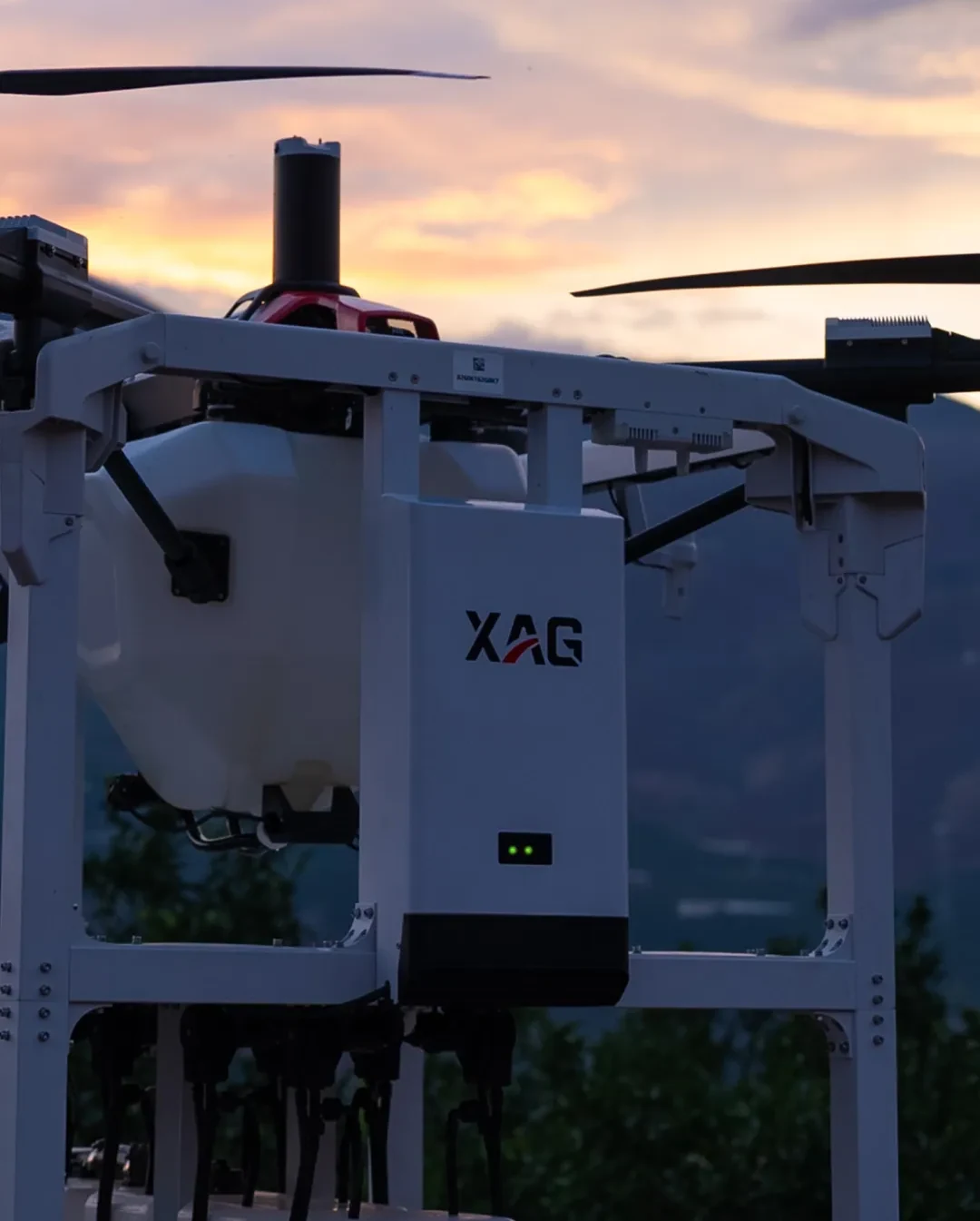

Return, dock and charge in one smooth motion.
Automatic take-off and landing, precise return to the dock and automatic recharging keep the work cycle running without labour.

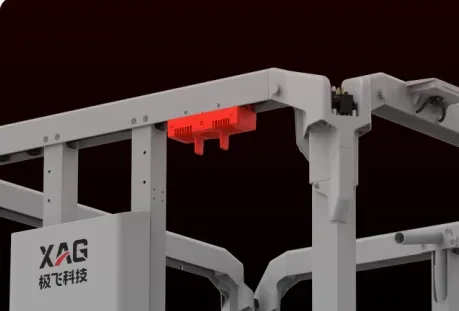

DX 1 dock controller
The dock's brain manages charging and chemical loading for every flight.

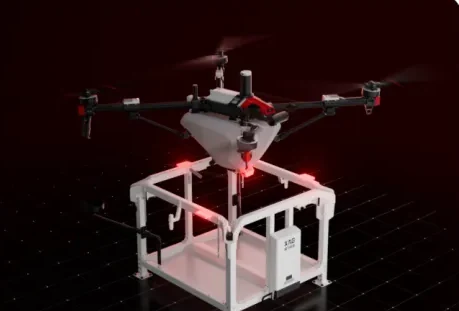

Near-field positioning
Precise positioning and guide rods seat the drone so charge and refill ports line up.

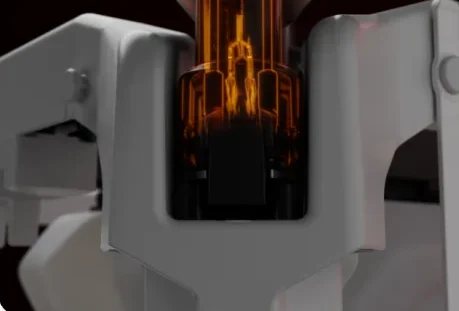

Floating connector
A compliant connector absorbs misalignment and impact to protect the charging port.

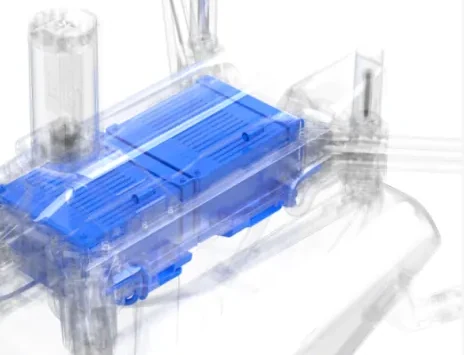

XAG smart flash-charge battery
High-rate charging, a battery management system and active cooling, sealed into the airframe.
- Fastest charge
- 2.5 min⁶
- Charge cycles
- 4,000⁷

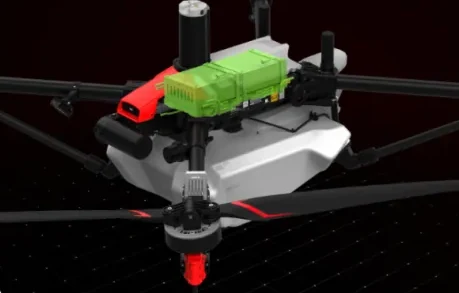

Built-in battery
Fixed in the airframe. No swapping, less handling and fewer faults.

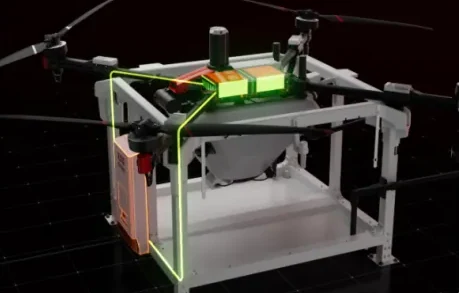

Battery management
Real-time cell matching prevents over-charge and over-discharge to extend cycle life.

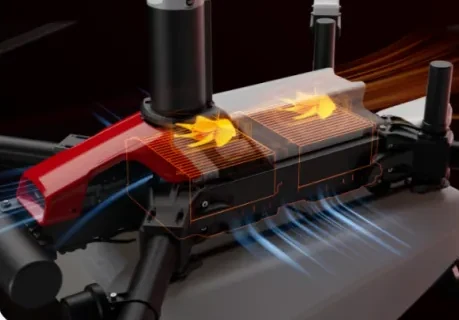

Thermal management
Air cooling carries away heat from high-rate charging for safer work in hot weather.

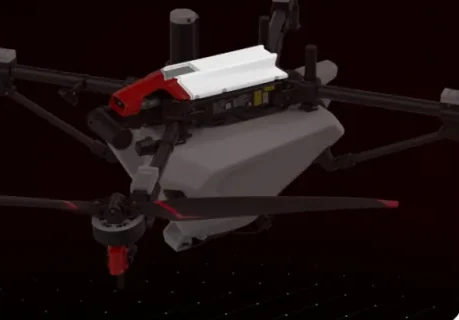

Protective cover
Shields the battery from sun and water and keeps debris out.

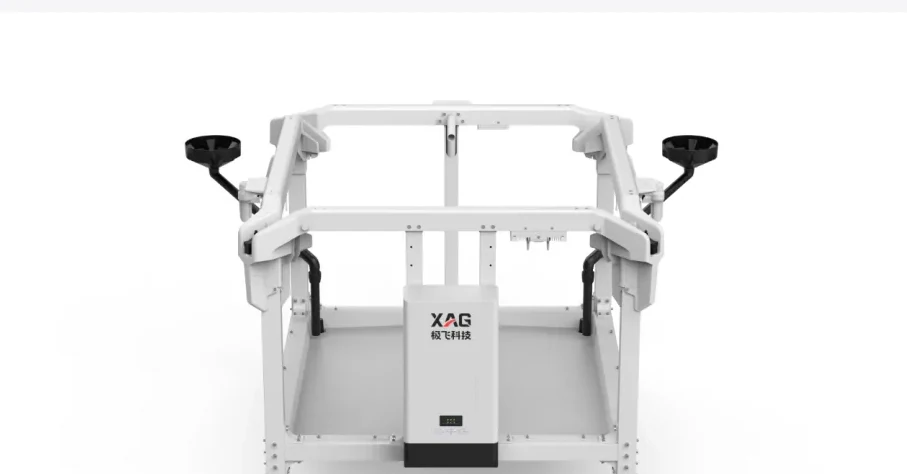

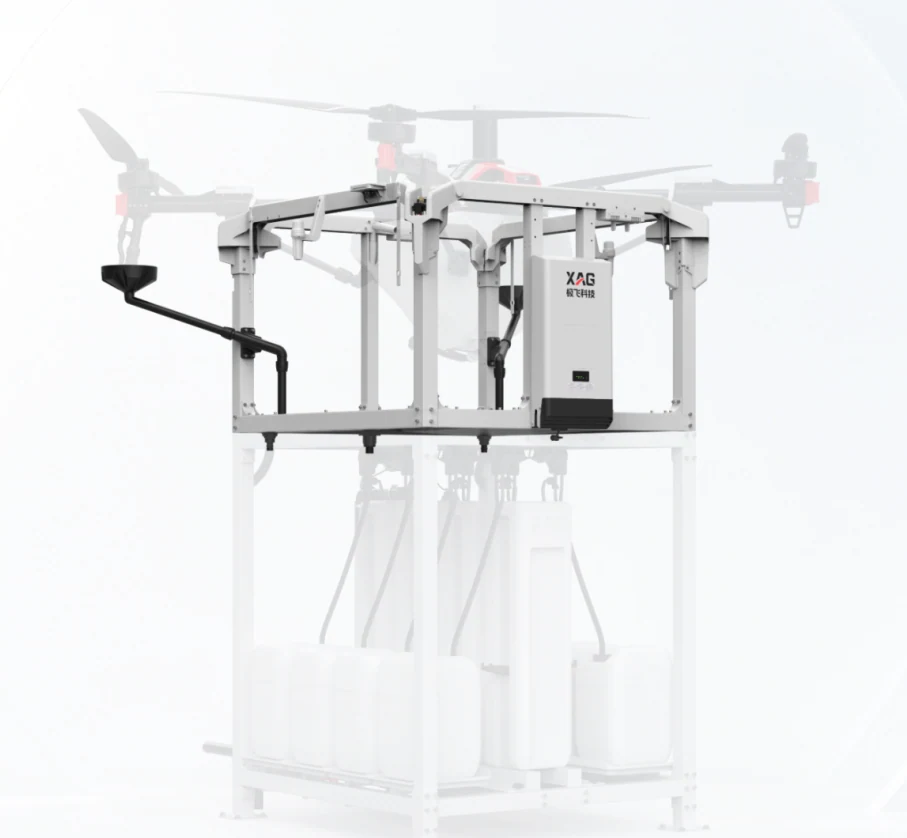

Two dock versions for your power supply
- XA1 dock, 10 kW
- Single- or three-phase charging. Paired with the X100.
- XA1 dock, 18 kW
- Three-phase charging. Paired with the X150.
Already run a P150 Max? X Series charging equipment is compatible with it, so one charging system can be shared. Canadian electrical requirements for the dock are part of our localization work with XAG.
All-weather, all-around safety. No compromises.
Multi-dimensional sensing, AI recognition and AR display build a safety net around every take-off, landing and job, from live environment checks to predictive obstacle avoidance.
SuperX 5 Apex controller
Double the computing power for more reliable RTK navigation, flight control, sensing and data links.
Take-off and landing alerts
Buzzer, lights and app alerts warn anyone nearby to keep clear.
1–100 m sensing range
All-weather detection of terrain and small obstacles for precise terrain following.⁸
FPV wide-area camera
Clearer images with more highlight and shadow detail, plus aerial survey and 3D modelling.
New MS3 multi-dimensional sensing module

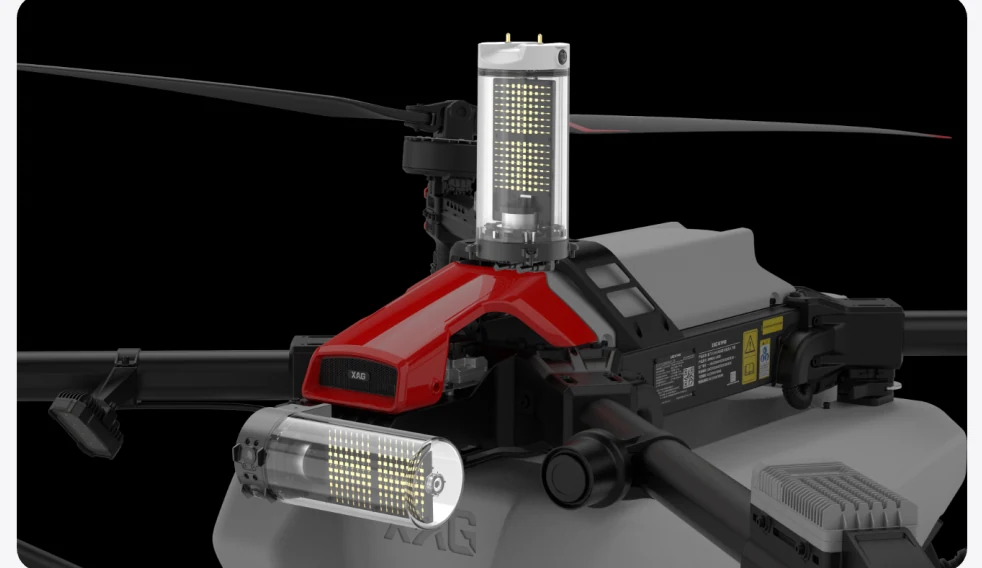

4D imaging radar
Millimetre-wave radar builds a 3D view of the surroundings for better obstacle avoidance.

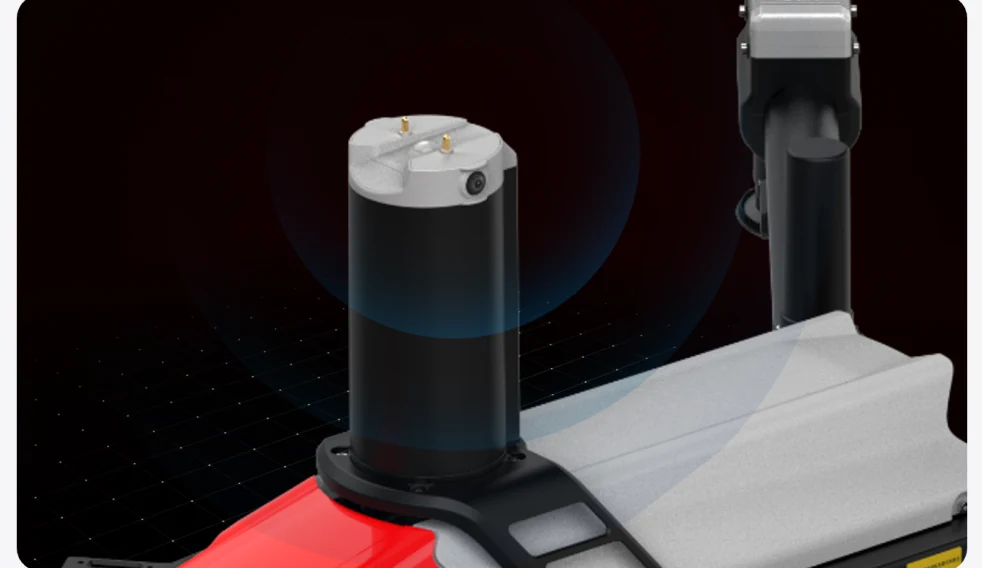

360° dual cameras
Surround view of the environment, with a Sentry Mode that spots risks early.

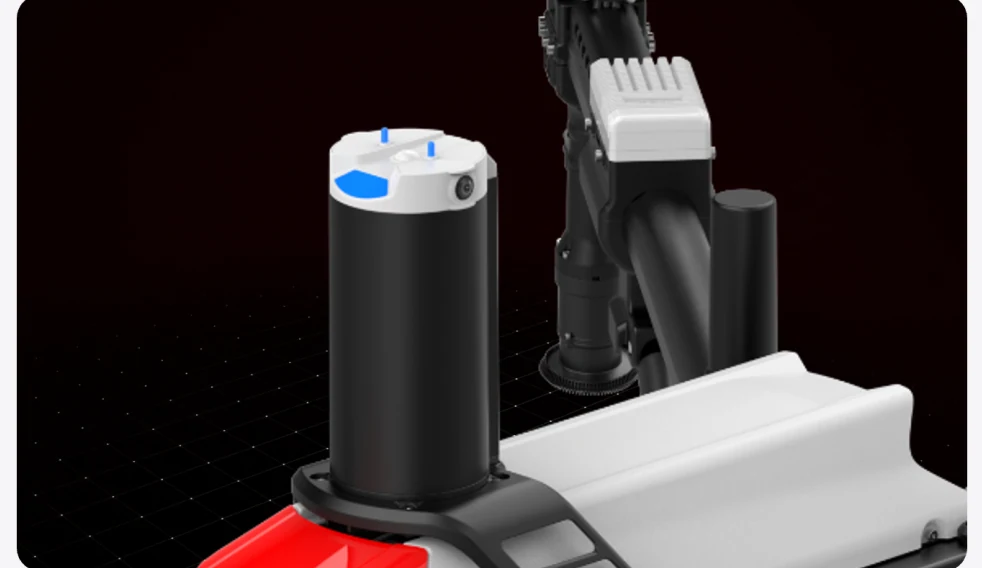

Weather sensing
Live wind and rainfall readings, linked to 24-hour forecasts.
Manage the land from one phone.
Several ways to operate, all equally smart. Pick the app that fits how you farm, and the controller that fits how you fly.
For farms with fixed plots
XAG Farm App
- On-site aerial survey and digital field map
- Start a whole job in one tap
- Live chemical, charging and flight status
- Saved job plans
- Automatic, traceable job reports
For spraying services on the move
XAG Agri-Service App
- Smart mixing to set ratios
- Up to 10 fields in one continuous job
- One operator, up to 5 drones
- One-tap self-cleaning of tank, pump and lines

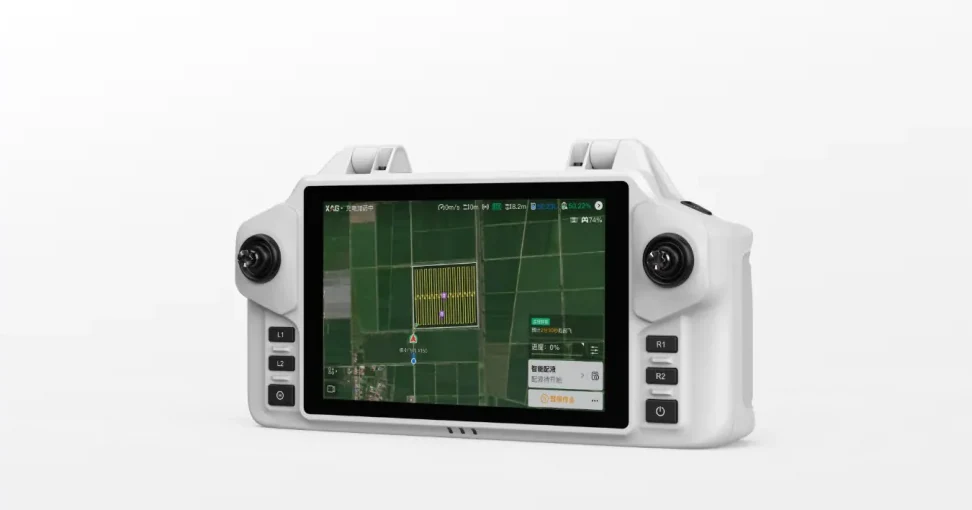

SRC 6 remote controller
A screen remote for autonomous jobs and manual flying.

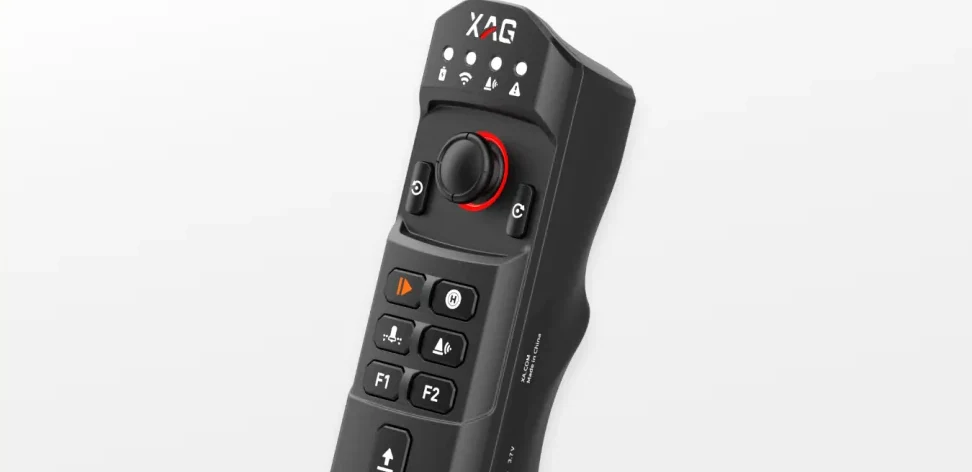

ACS 4 smart handheld
One-button operation and a 12-hour battery life.⁹
App names are working translations. XAG's official English app names and Canadian app availability will be confirmed at release.
Multi-layer protection, built to live outdoors.
Heat-, corrosion- and wear-resistant, the X Series is designed to stay deployed through wind, sun and rain. Cold-weather behaviour is part of our Canadian testing.

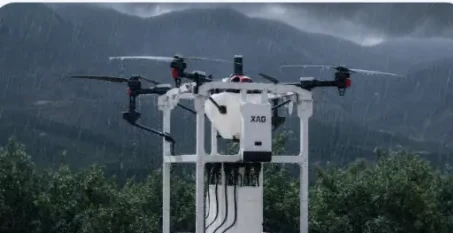

IPX6K rated
Dust and rain are no problem, so the drone can stay deployed outdoors.

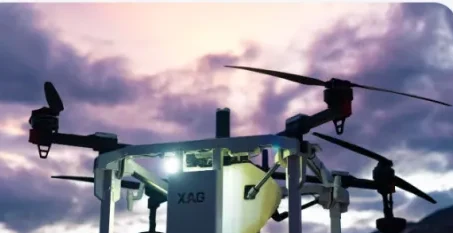

Bird deterrence
Built-in routines keep the dock and drone clean on standby.

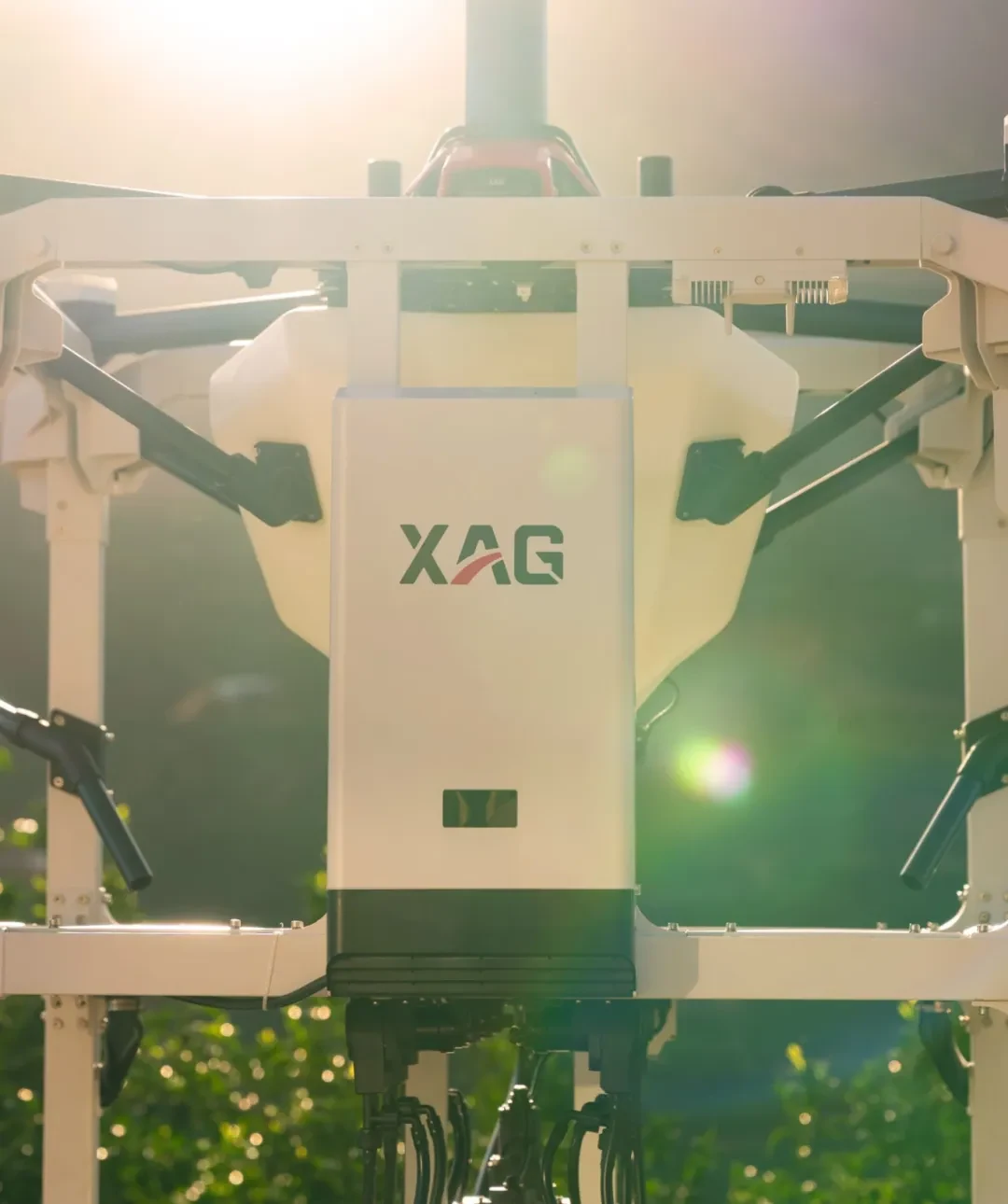

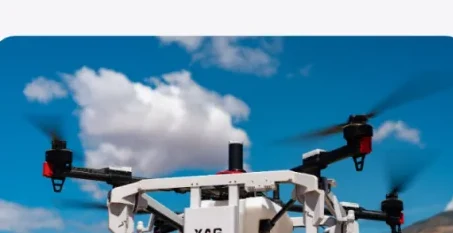

Sun-reflective finish
Light-coloured core parts reflect most solar radiation and limit heat build-up.

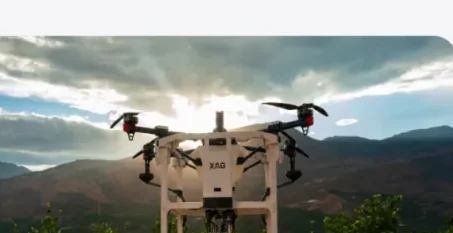

Steel and aluminium dock
A strong, stable frame built for a long service life.
Two models. Large plots or small.
Both share the same dock, station, sensing and apps. The choice comes down to tank size, battery and the power you have on site.

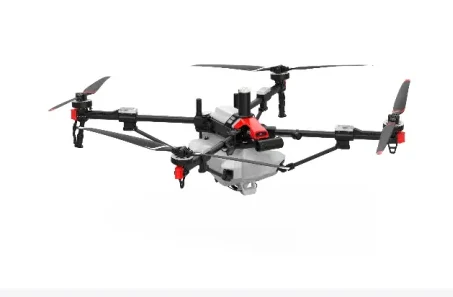

XAG X100
Smaller blocks and orchards
- Spray tank
- 50 L
- Propellers
- 63 in
- Battery
- Single battery
- Dock
- XA1 dock, 10 kW

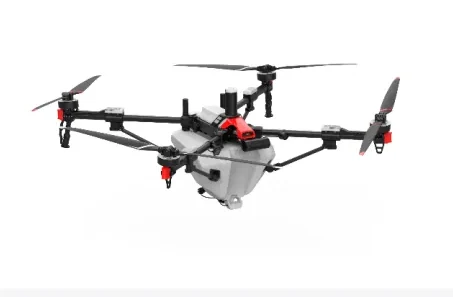

XAG X150
Larger fields and longer runs
- Spray tank
- 85 L
- Propellers
- 66 in
- Battery
- Dual battery
- Dock
- XA1 dock, 18 kW
Upgrade kit: XAG Mist 2 nozzle kit (X Series), droplets as small as 10 μm. Canadian packages will be confirmed before release.
Demonstrations in Canada
Join the demonstration waitlist
Be first to see the X Series flying in Canada. We will invite you to a field demonstration once Canadian testing units are running.
Ready to reserve a system instead? Preorder on the product page.
Specifications
Agricultural drone
- Models
- X100 / X150
- Spray tank
- 50 L (X100) / 85 L (X150)
- Propellers
- 63 in (X100) / 66 in (X150)
- Battery
- Single (X100) / dual (X150), built in
- Droplet size²
- 50–500 μm
- Effective spray width³
- 5–10 m
- Maximum spray flow
- 42 L/min
- Pump flow
- Up to 21 L/min per pump
- Protection
- IPX6K
- Flight controller
- SuperX 5 Apex
Dock and charging
- Dock
- XAG XA1 agricultural drone dock
- Versions
- 10 kW (single- or three-phase) / 18 kW (three-phase)
- Fastest charge
- 2.5 min⁶
- Full charge
- 3.5 min⁵
- Battery cycles
- 4,000⁷
- Dock controller
- DX 1
- P150 Max compatibility
- Charging equipment can be shared with the XAG P150 Max
Mixing and refilling
- Stations
- LM1-190 / LM1-120 mixing and refilling, L1 refilling
- Mixing tank
- 190 L / 120 L
- Maximum refill flow
- 60 L/min
- Cleaning
- Automatic water-circulation flush¹
Sensing and control
- Sensing module
- MS3 multi-dimensional sensing
- Detection range
- 1–100 m⁸
- Sensors
- 4D imaging radar, dual 360° cameras, wind and rain
- Camera
- FPV wide-area camera
- Controllers
- SRC 6 remote, ACS 4 handheld (12 h⁹)
- Apps
- Farm App, Agri-Service App
Specifications are from XAG's launch materials and may change for the Canadian release while SkyFlow and XAG complete localization, testing and legal review. Superscript numbers refer to the footnotes.
- 1. Do not discharge cleaning waste onto fields. Collect it in dedicated containers and dispose of it under local pesticide-waste rules.
- 2, 3, 7. Actual figures depend on real conditions, including environment, temperature and how the product is operated.
- 4. Lab-tested. Service life varies with chemicals and workload.
- 5, 6. Lab-measured with the 18 kW XA1 dock: one B18630 battery from 30% to 80% in about 2.5 min and from 15% to 90% in about 3.5 min.
- 8. Sensing range and obstacle avoidance vary with light, rain, fog and the material, position and shape of objects.
- 9. Measured data. Values vary with charging environment, usage and maintenance.
Questions about the Canadian launch
When will the X Series be available in Canada?
SkyFlow expects the first Canadian deliveries in 2027. We are working with XAG on localization, field testing and legal review, and will confirm the release date, configuration and pricing as that work finishes.
How does the $99 preorder deposit work?
Pay a CAD $99 deposit at checkout to secure a prioritized order position, in the order deposits are received. It is fully refundable at any time before you place your final order (email [email protected]), and it is credited toward your purchase. We contact you to confirm configuration, pricing and delivery before anything is final.
Which model should I choose, X100 or X150?
The X100 carries a 50 L tank on a single battery and pairs with the 10 kW dock. The X150 carries 85 L on dual batteries with the 18 kW dock. Tell us about your crop, block size and power supply and we will recommend one.
Can I see it working before I buy?
Yes. Join the demonstration waitlist and we will invite you to a field demonstration once Canadian testing units are running.
Who sells and supports the X Series in Canada?
SkyFlow is an authorized XAG distributor in Canada, and the X Series is sold and supported by SkyFlow dealers. We train our dealers to sell, install and support XAG equipment, and we will set up X Series service, parts and training before release.
Will the X Series meet Canadian rules for drones and pesticide application?
That is part of the legal review now under way. Operators remain responsible for following Transport Canada drone rules, product labels and provincial pesticide requirements. We will publish Canadian operating guidance with the release.
