High-flow spraying
RevoSpray 4 combines a 70 L tank, rotary atomization, and up to 30 L/min maximum flow.
One airframe. Three grounded jobs.
The P150’s pitch is not that one module does everything. It is that the same flight platform can move between dedicated spray, spread, and mapping systems—while keeping aircraft, controls, positioning, and power workflow familiar to the crew.
RevoSpray 4
Configure the 70 L smart liquid tank, dual pumps, and rotary atomization system for open-field and orchard crop protection.
Task-system configuration, application rate, route, and operation remain subject to the product instructions, field conditions, and applicable Canadian requirements.
70 kg task payload
A multi-task airframe sized for liquid, granular, and mapping configurations.
Granular spreading
RevoCast 4 supports fertilizer, seed, feed, and dry-powder workflows.
Terrain perception
SuperX 5 Pro combines 4D imaging radar with real-time 3D terrain mapping.
Field-ready structure
Detachable task systems, foldable arms, and IPX6K protection support field turnover.
Prescription workflows
XAG One can use compatible maps for zone-based variable-rate application.

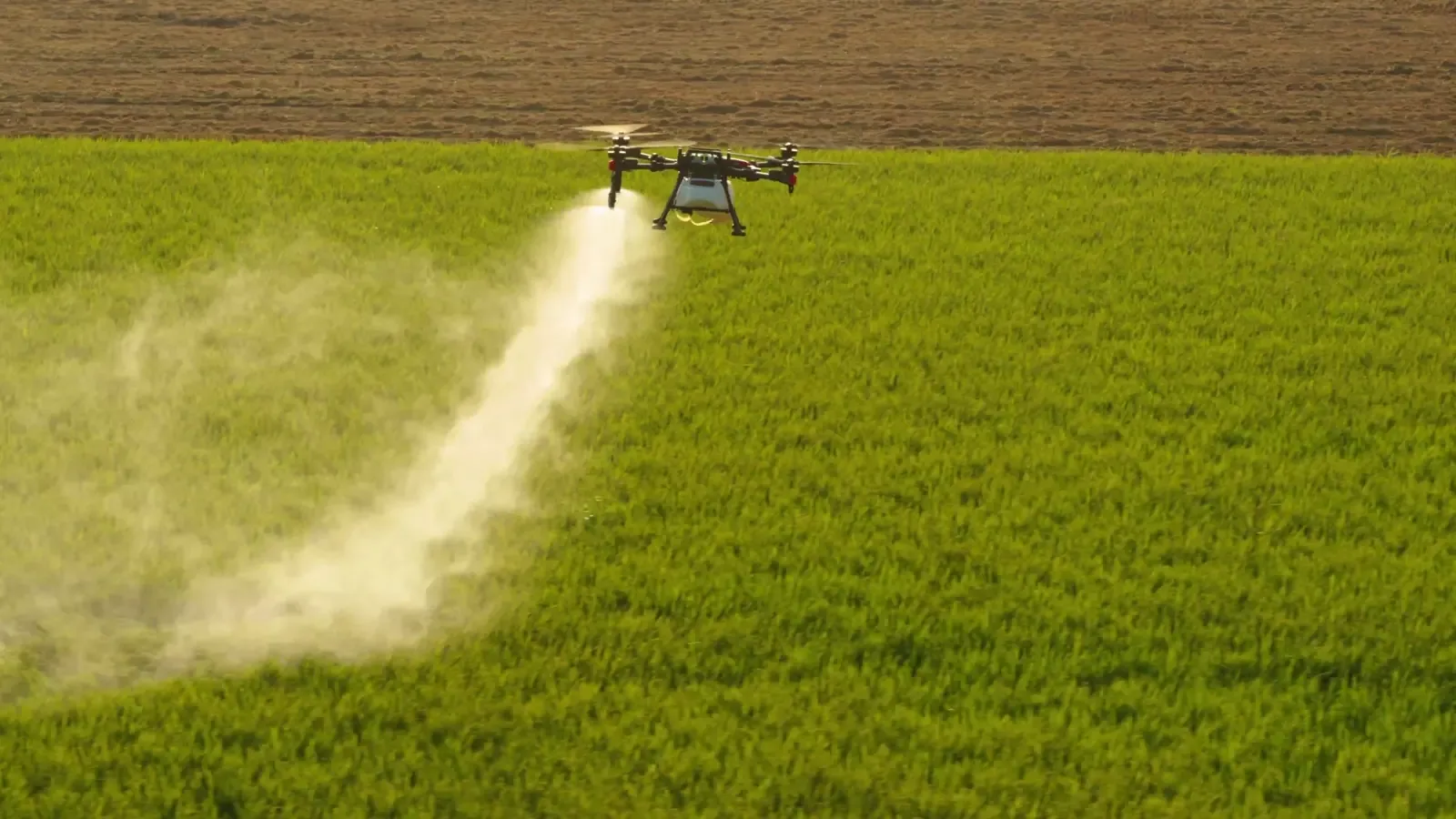

Flow for volume. Droplet control for the target.
RevoSpray 4 combines strong quad-rotor downdraft with rotary atomization. The system supports open-field and orchard workflows, but coverage still depends on the label, canopy, weather, route, width, speed, flow, and droplet setting selected for the job.
- Smart liquid tank
- 70 L
- Maximum flow
- 30 L/min
- Effective width
- 5–10 m
- Droplet range
- 60–500 μm
Flexible impeller pumps
The dual-pump system reaches a maximum flow of 30 L/min and more than 300 hours of pump service life.

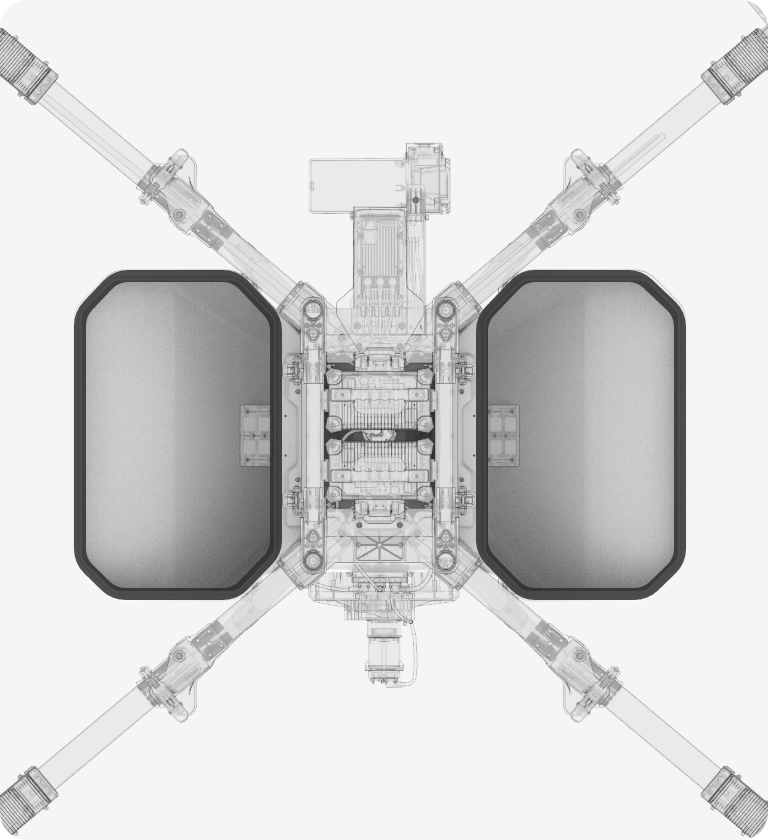

70 L smart liquid tank
A pressure-based liquid-level system is designed to reduce foam interference when reading remaining volume.
Rotary atomization
Adjustable 60–500 μm droplets support different target, canopy, volume, and weather requirements.
Quick-filling ports
Nested caps simplify refilling between application cycles.
Application capacity
495 L/ha
At 2.5 m/s travel and 4 m spray width.
Application capacity
102 L/ha
At 7 m/s travel and 7 m spray width.

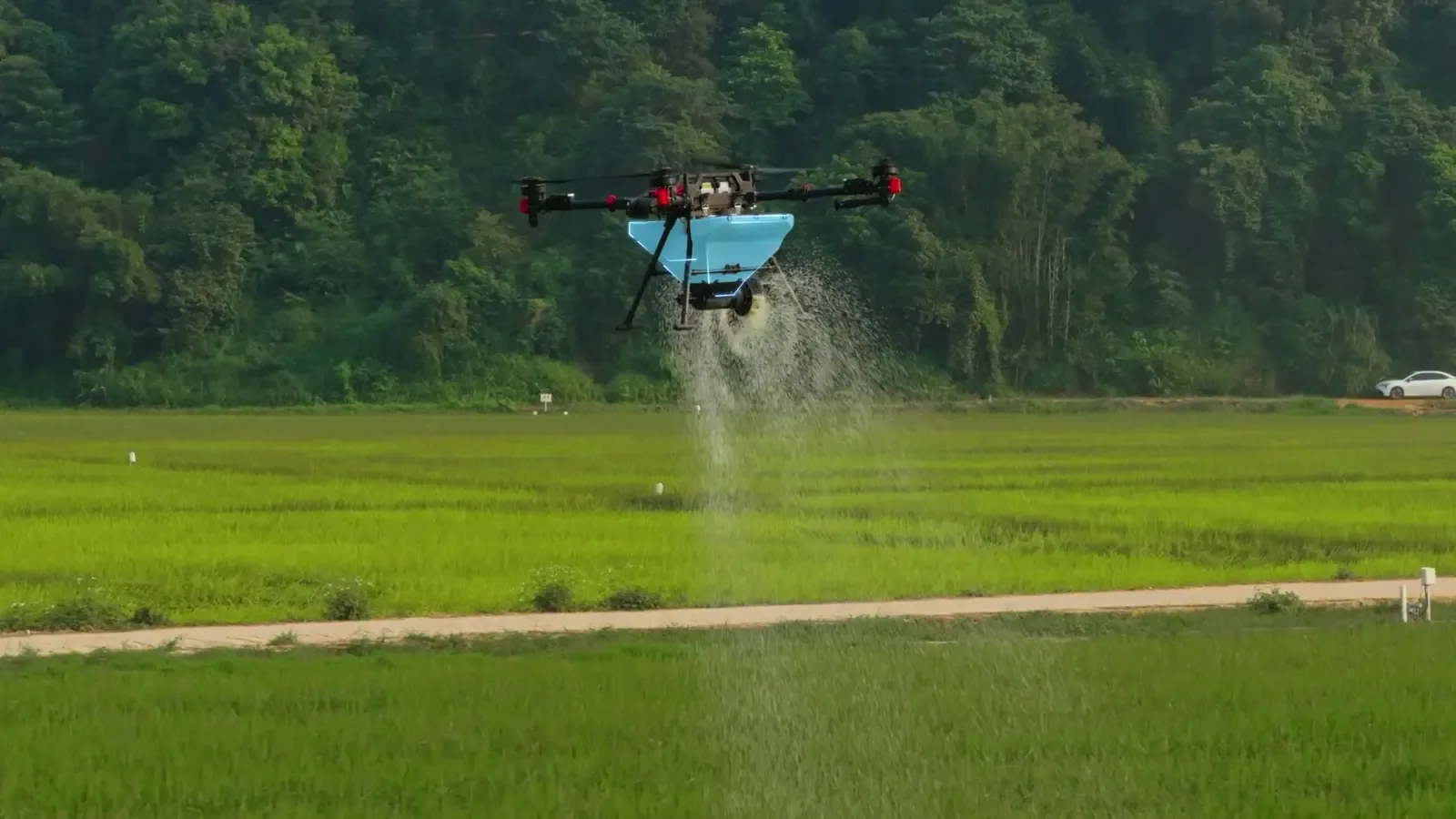

Match the feeder to the material.
RevoCast 4 pairs a 115 L container with interchangeable screw feeders and a vertical waving spreader. Output changes with material density, granule size, surface, moisture, wind, route, and calibration change real output.
- Granule container
- 115 L
- Compound-fertilizer test
- 280 kg/min
- Urea test
- 220 kg/min
- Effective width
- 8 m

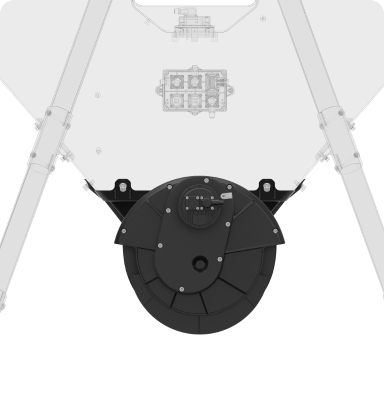

Vertical waving spreader
Adds downward force to granules to support wide placement and wind resistance.

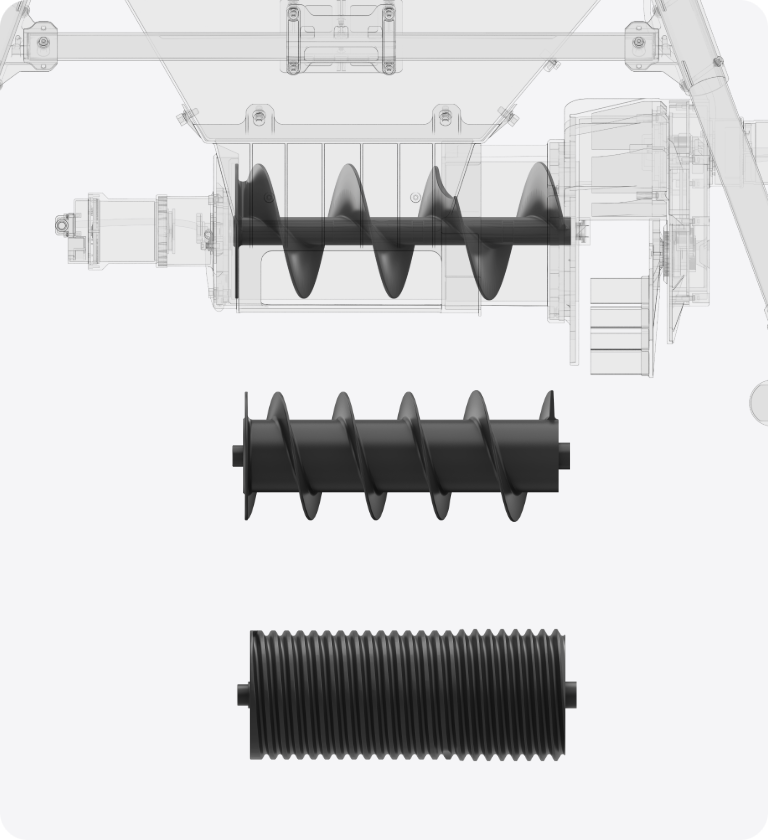

Three screw-feeder options
Match the delivery system to fertilizer, direct seeding, aquaculture feed, or powder.
Dual-side filling
Large filling ports on both sides reduce handling time at the refill point.

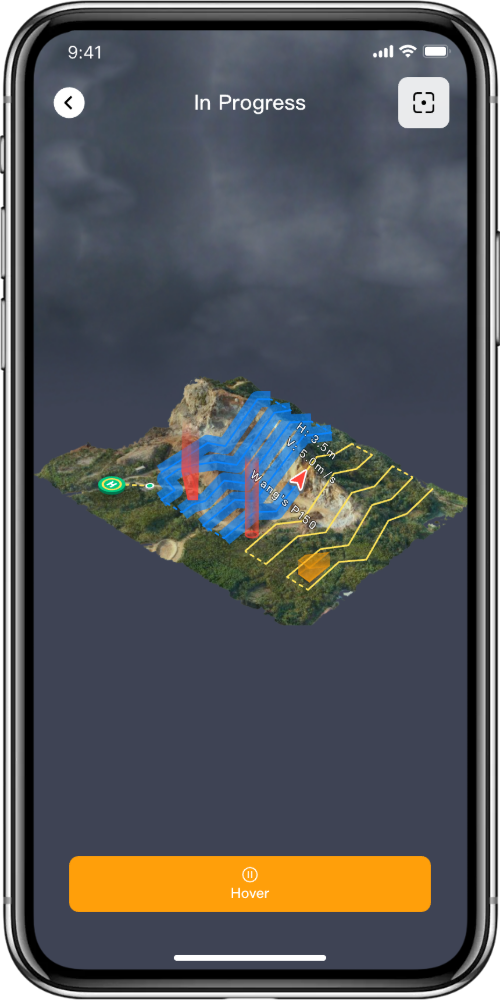

Map first. Fly from a field model.
RealTerra 3 captures high-definition imagery during an autonomous survey, stitches the result after landing, and supports later route planning across up to 32.9 ac (13.3 ha) in one flight.

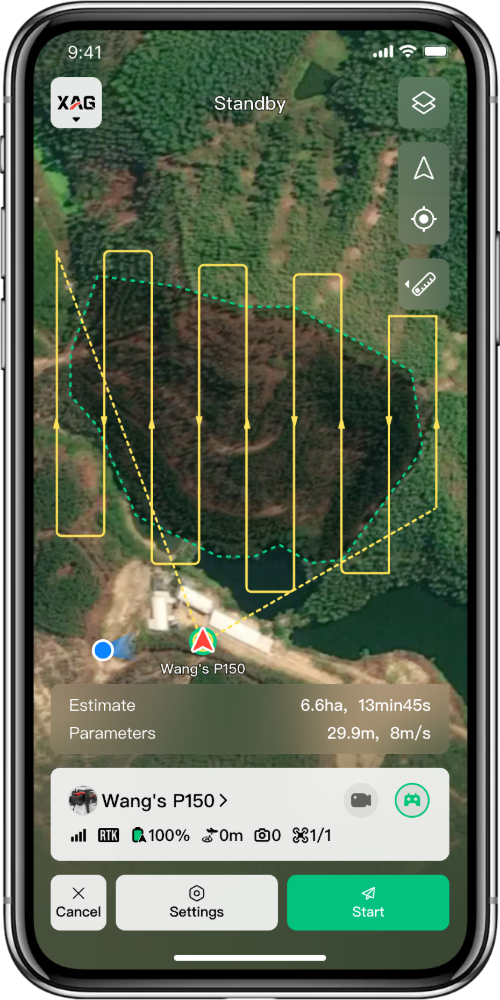

One-tap mapping
Build and launch the survey route from the field workflow.

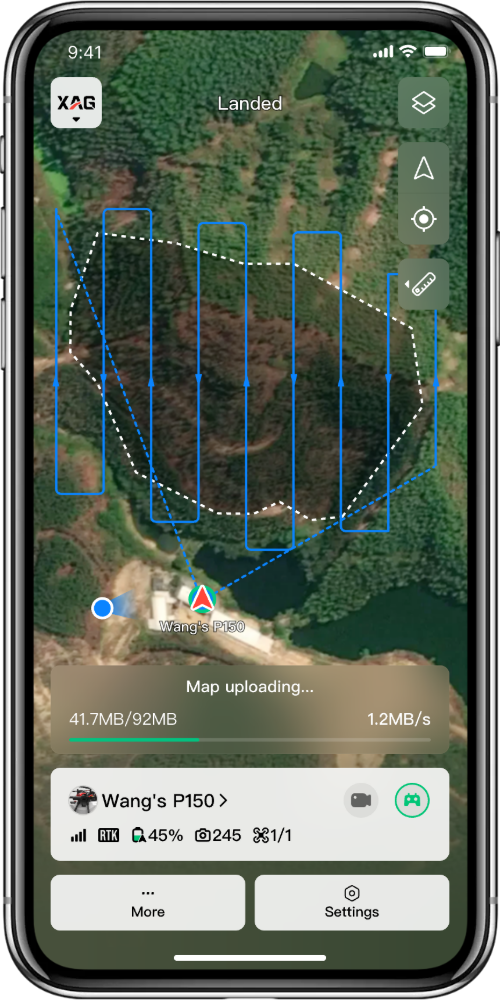

Offline export
Generate the map after landing without depending on a network connection.
3D planning context
Use a realistic terrain model when planning work over complex ground.
Perception that informs the route.
SuperX 5 Pro combines 4D imaging radar, real-time 3D terrain mapping, and downward visual assistance. These systems support flight planning and intervention—they do not make every obstacle, surface, or environment detectable.
4.9–328 ft
(1.5–100 m)
Radar sensing range
Real-time 3D
Terrain mapping without a preloaded map
Assisted landing
Downward vision records and checks the landing area

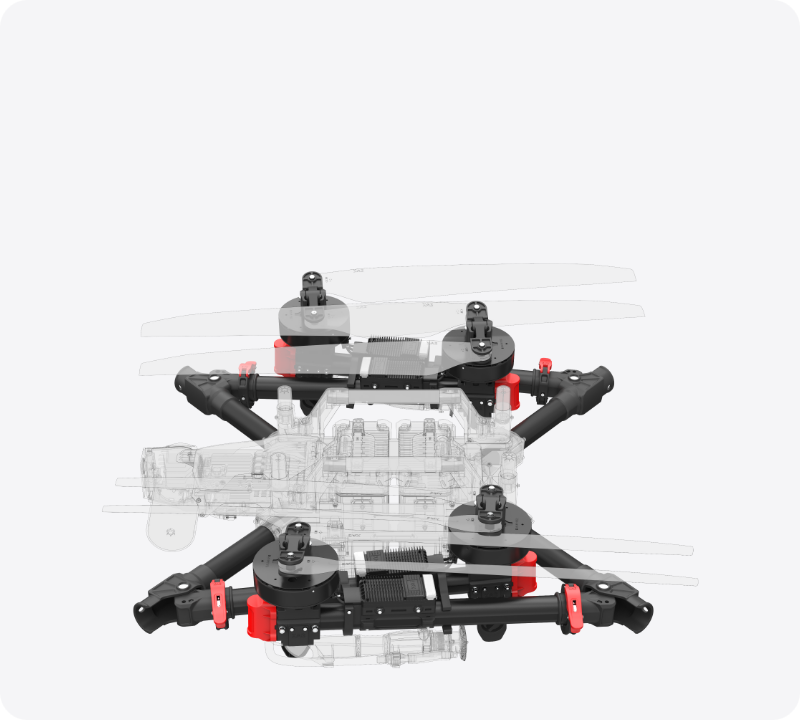

Built around field turnover.
The useful design story is practical: task systems detach, arms fold, the aircraft carries an IPX6K rating, and the structure is organized for transport, assembly, cleaning, and maintenance between jobs.

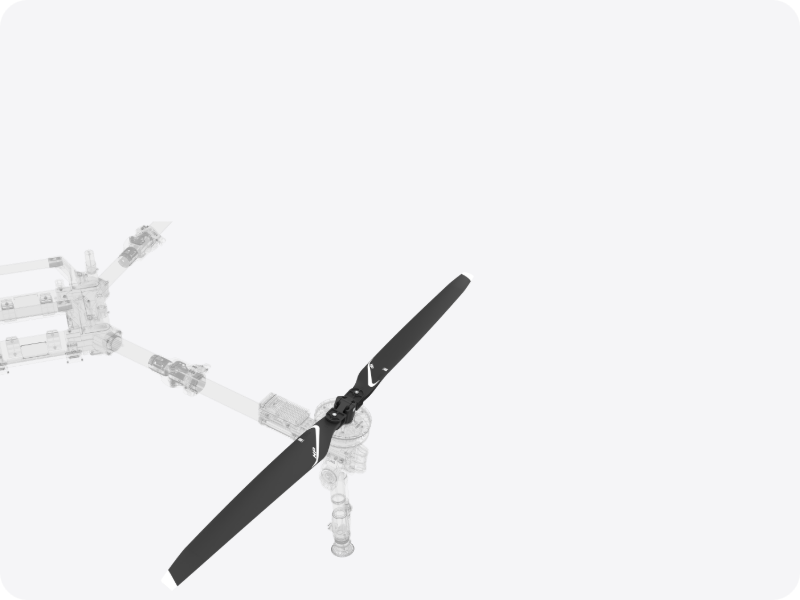

60-inch propellers
Designed for deformation and heat resistance with lower operating noise.

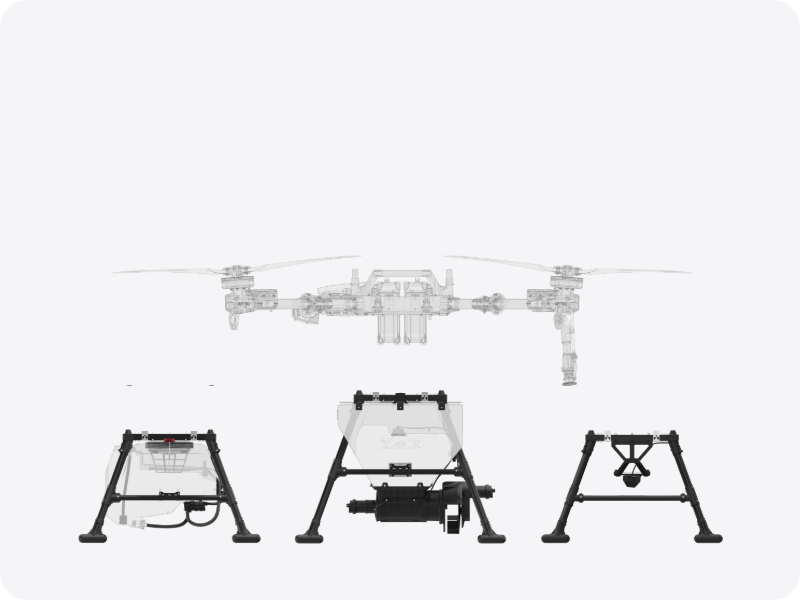

Separable task systems
Switch the aircraft between spraying, spreading, and mapping configurations.
Foldable arms
Folding the arms reduces aircraft volume by 20% for storage and transport.

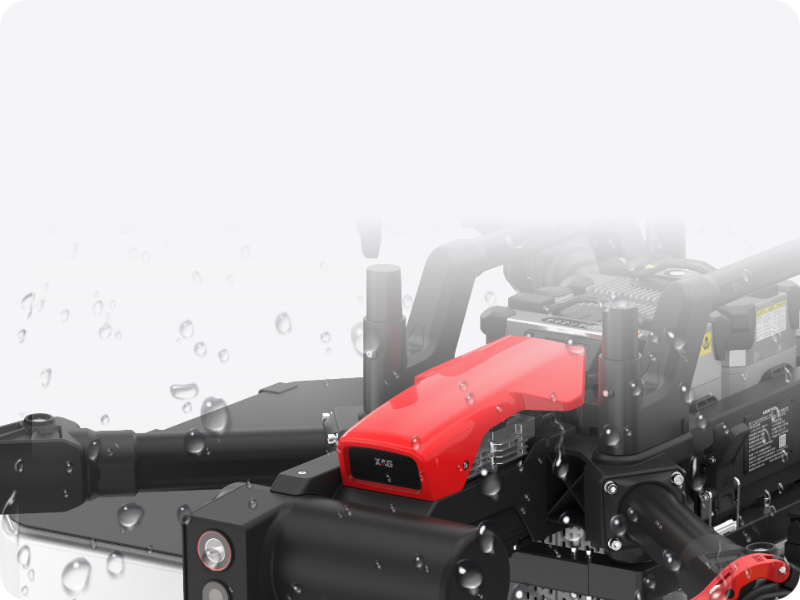

IPX6K aircraft protection
The protected airframe is designed for direct wash-down after operation.
Organize the operation, not just the flight.
XAG One brings route planning, multi-field queues, collaboration, variable-rate application, and access-route controls into one workflow. Availability and permitted use depend on the current software, aircraft setup, and Canadian operating framework.

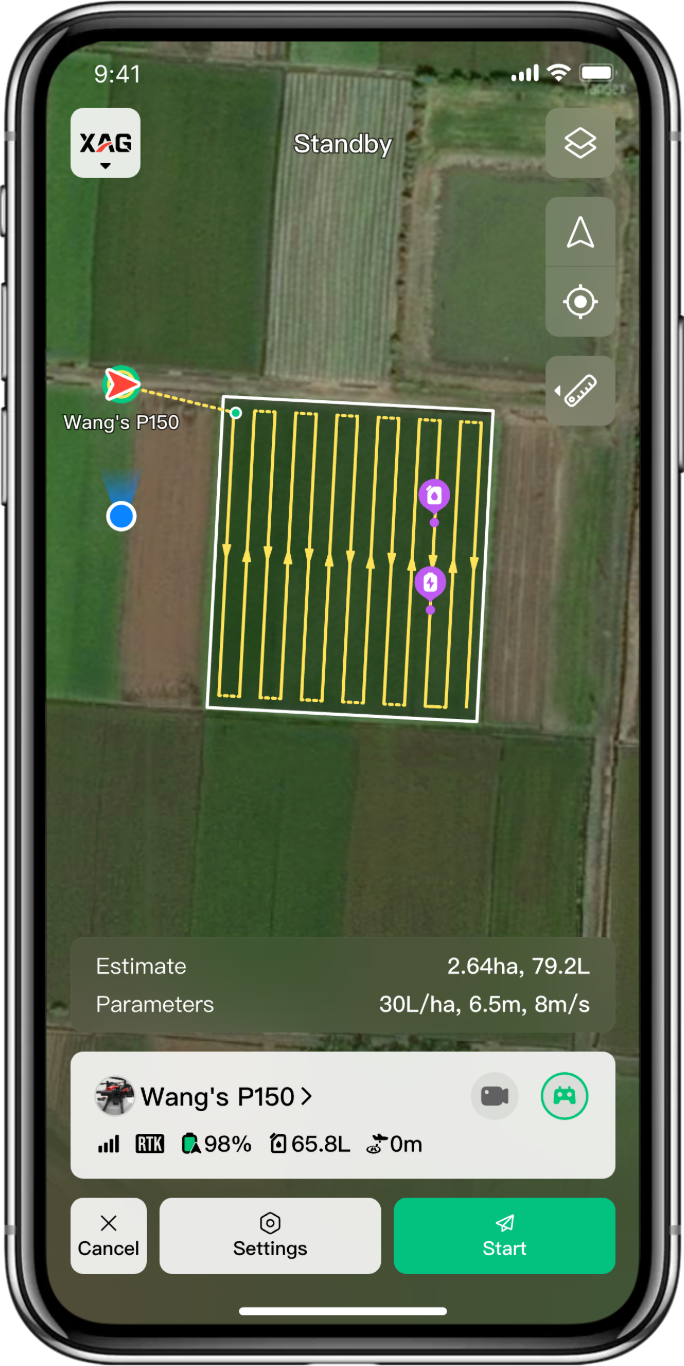

Plan the field around its real boundaries.
XAG One generates a route from field shape and mission parameters. Low-liquid and low-power workflows can return the aircraft home, with pause and resume available to the operator.
Choose the control surface for the job.

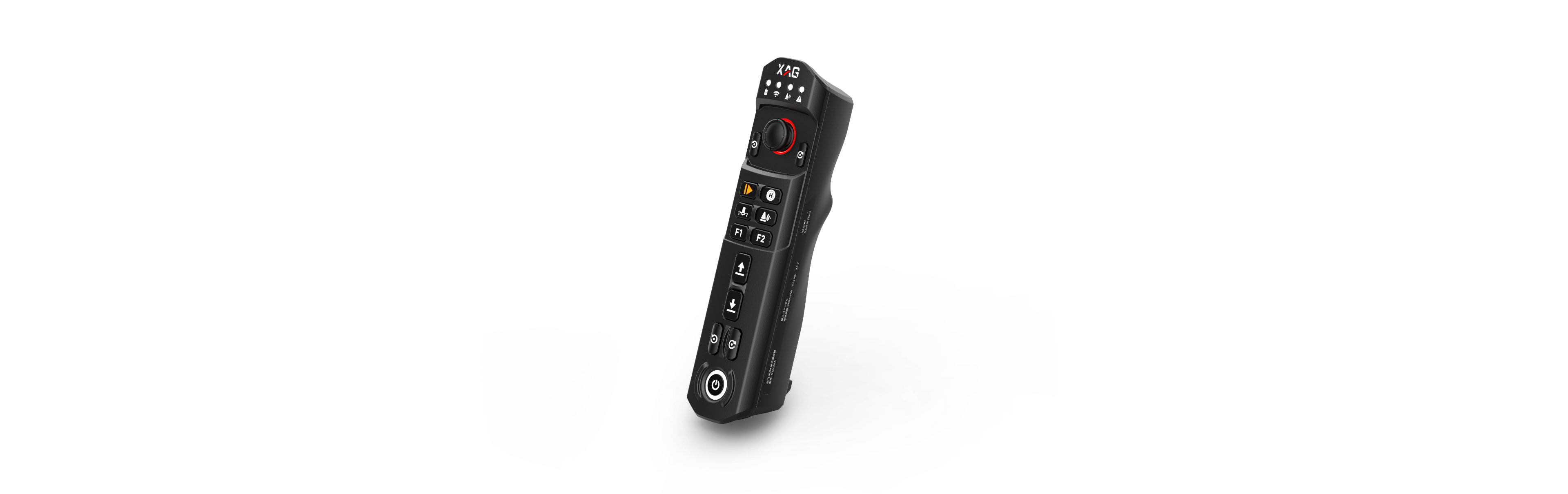

ACS4 Control Stick
A lightweight one-hand control with Bluetooth quick link, safety lock, one-button operation, and up to 12 hours of endurance.

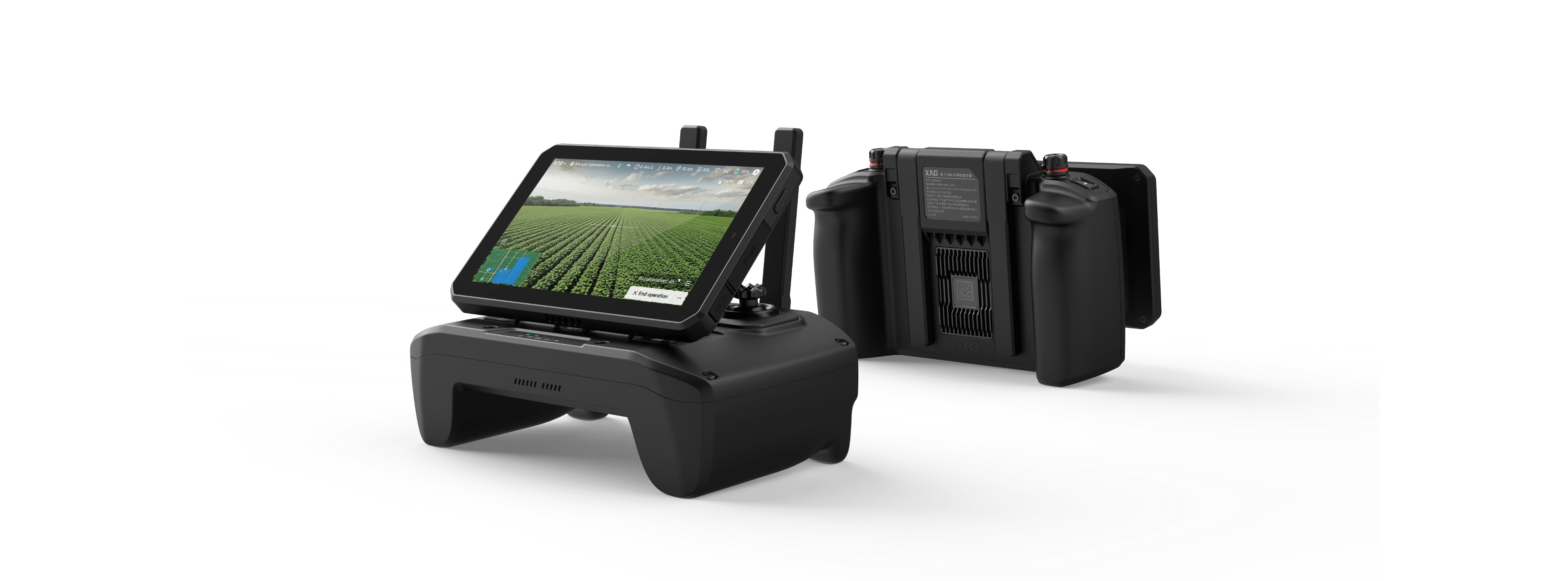

SRC4 Smart Controller
A 6-inch 2K display, manual and autonomous modes, downward-FPV waypoint marking, and an open-field range up to 1.2 mi (2 km).

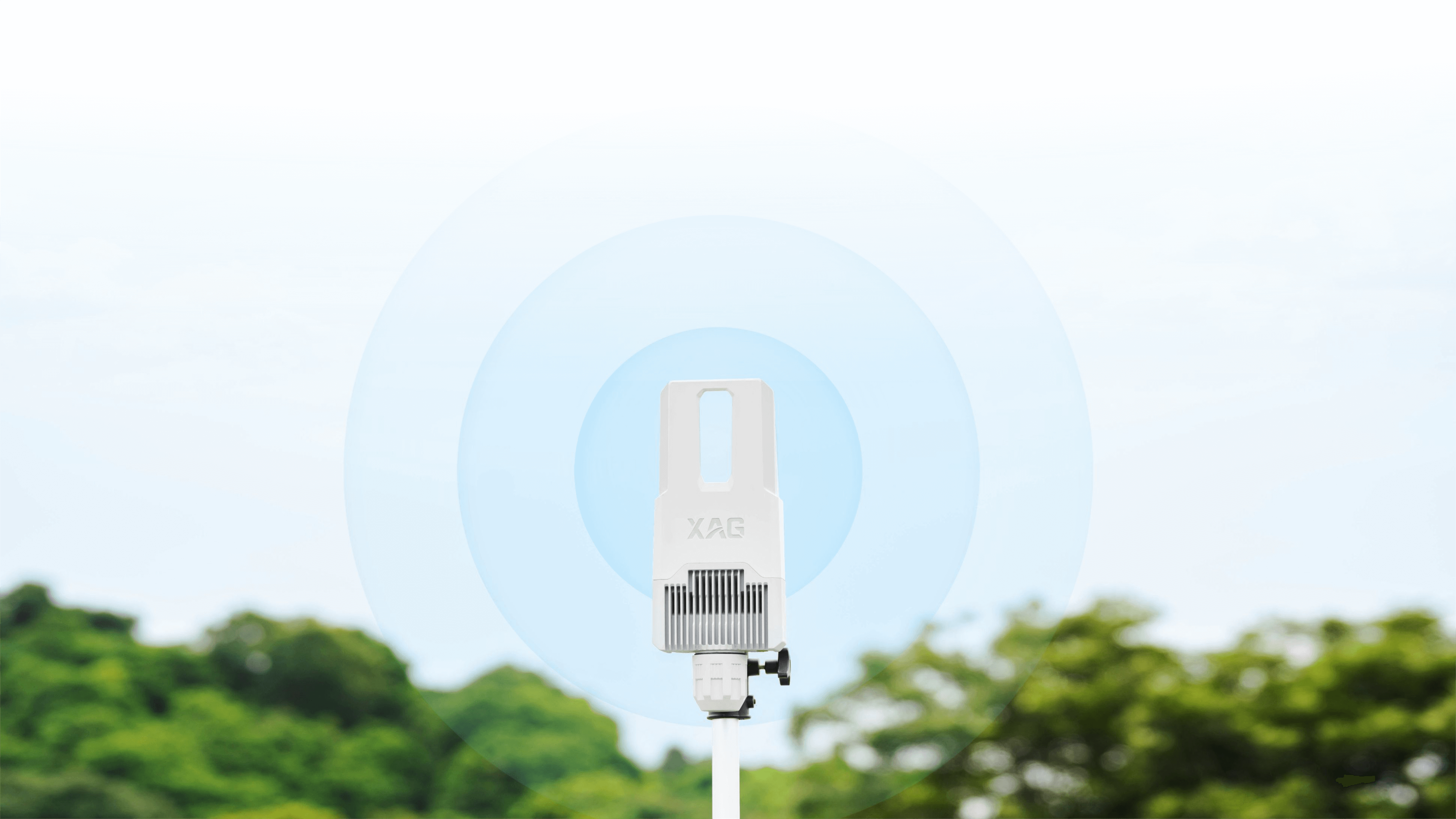

Plan for the field without dependable service.
XRTK6 Pro can provide local positioning without a CORS network, while DL1 extends Wi-Fi communication. Range claims are open-field references and must be tested against terrain, obstructions, interference, and the actual crew location.

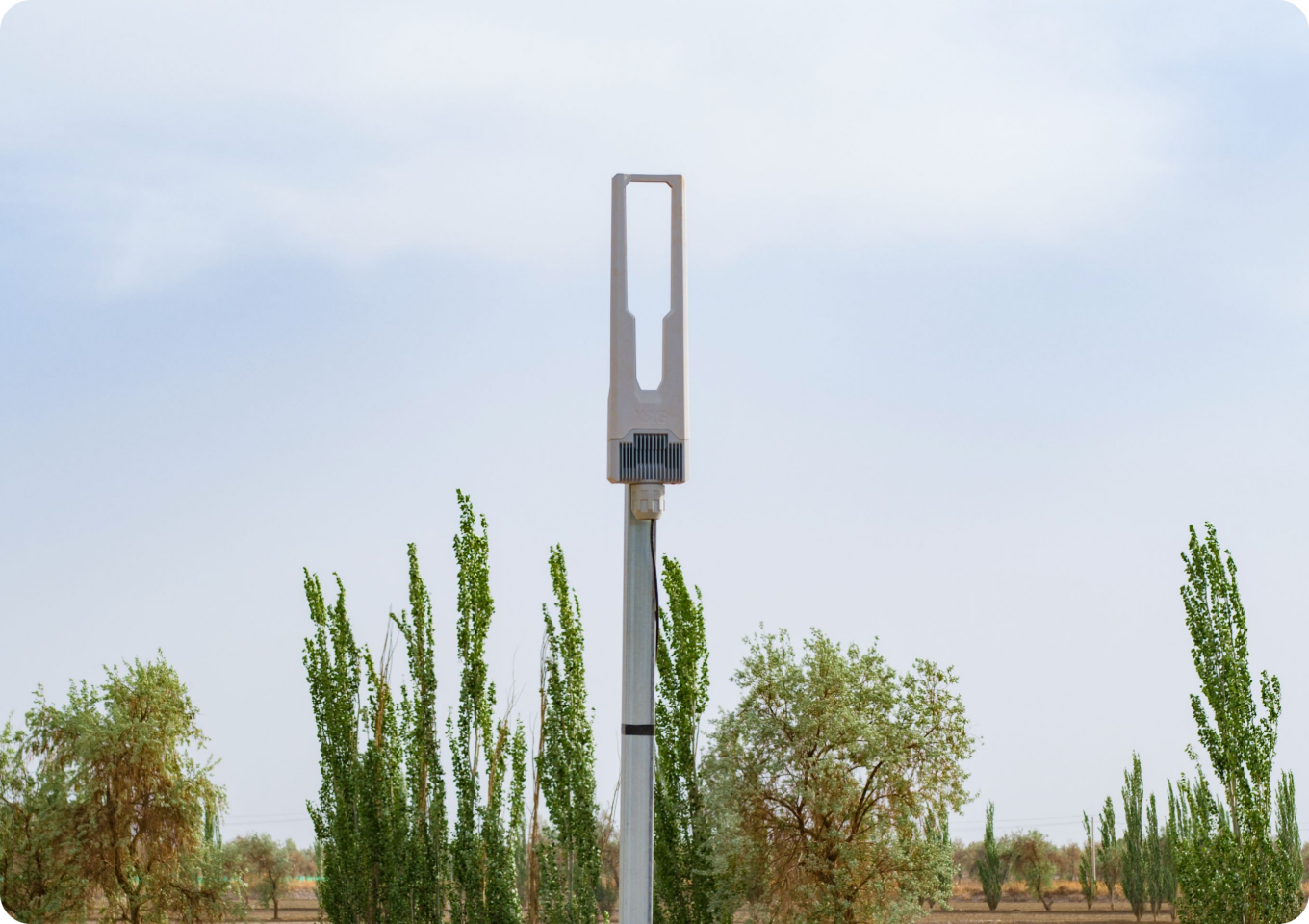

DL1 Data Link
Up to 2 km Wi-Fi repeating, smartphone connection, and support for two-aircraft workflows.

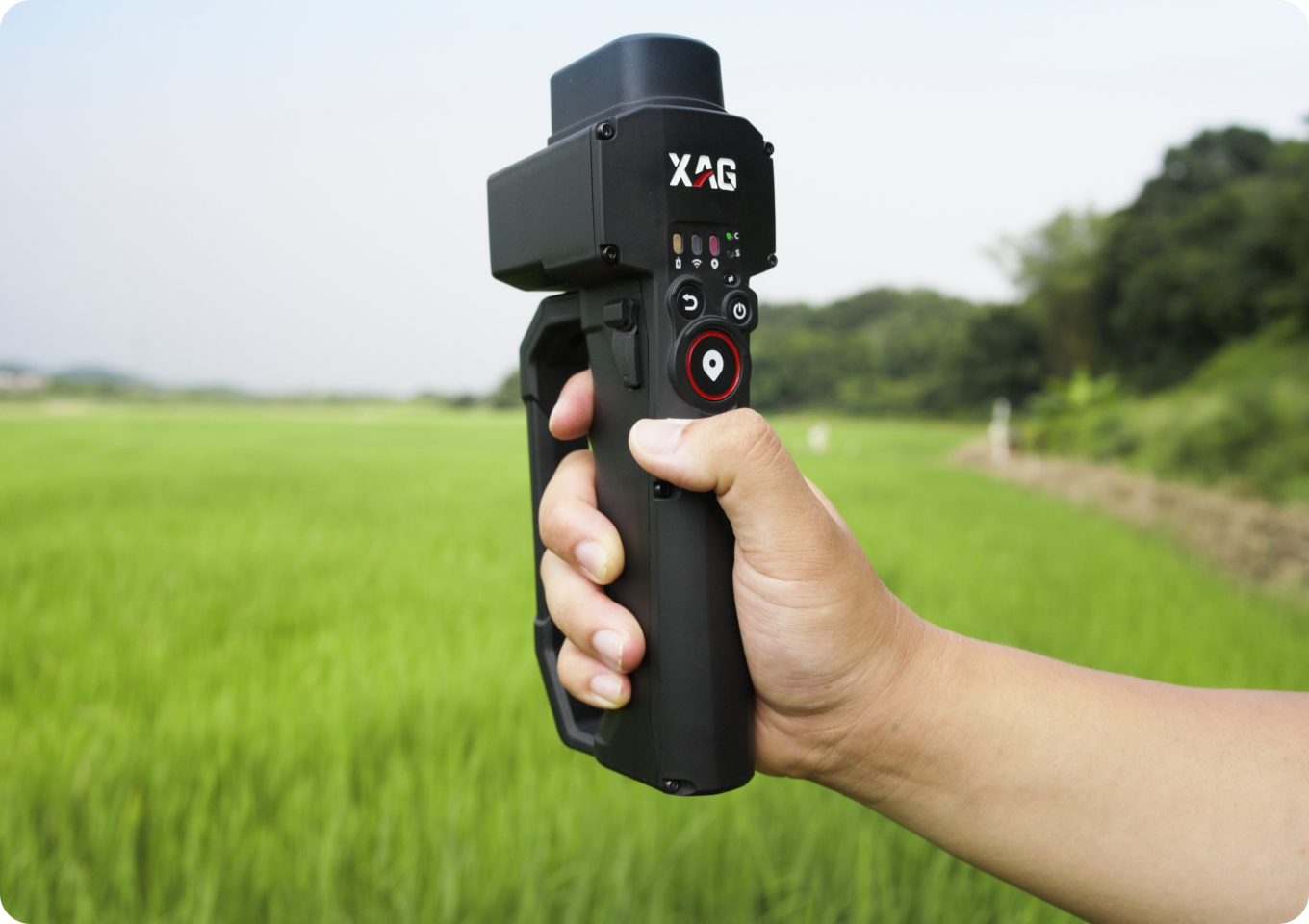

XRTK6 Pro Mobile Station
Portable RTK base, field marking, PPP support, and Wi-Fi repeating up to 1.5 km.
Build charging around the operating day.
The P150 power system combines the 975 Wh B13970S battery with cooling, fuel-powered, AC, and parallel charging options for fast field turnaround.

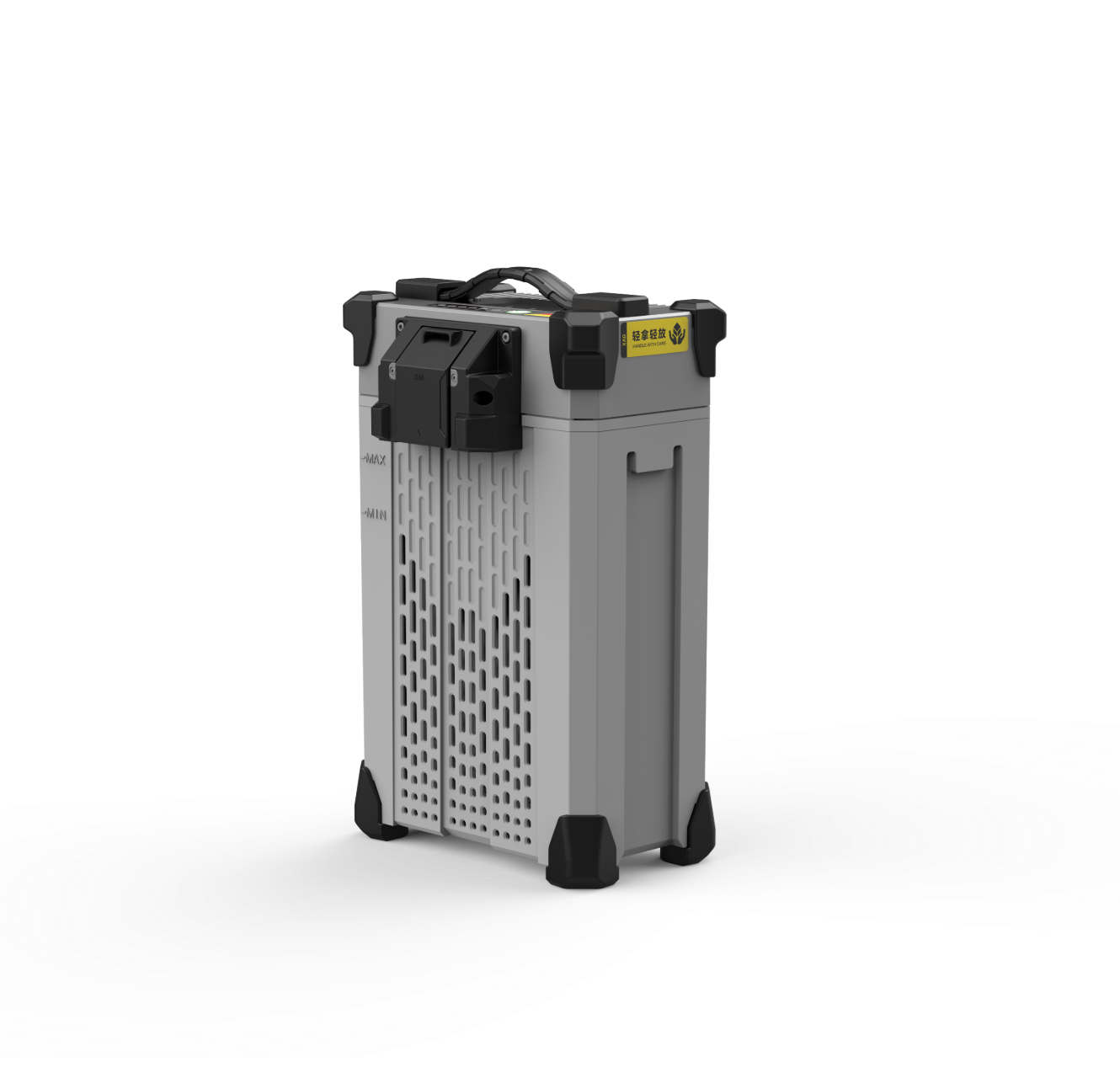

B13970S
975 Wh · 1500 cycles

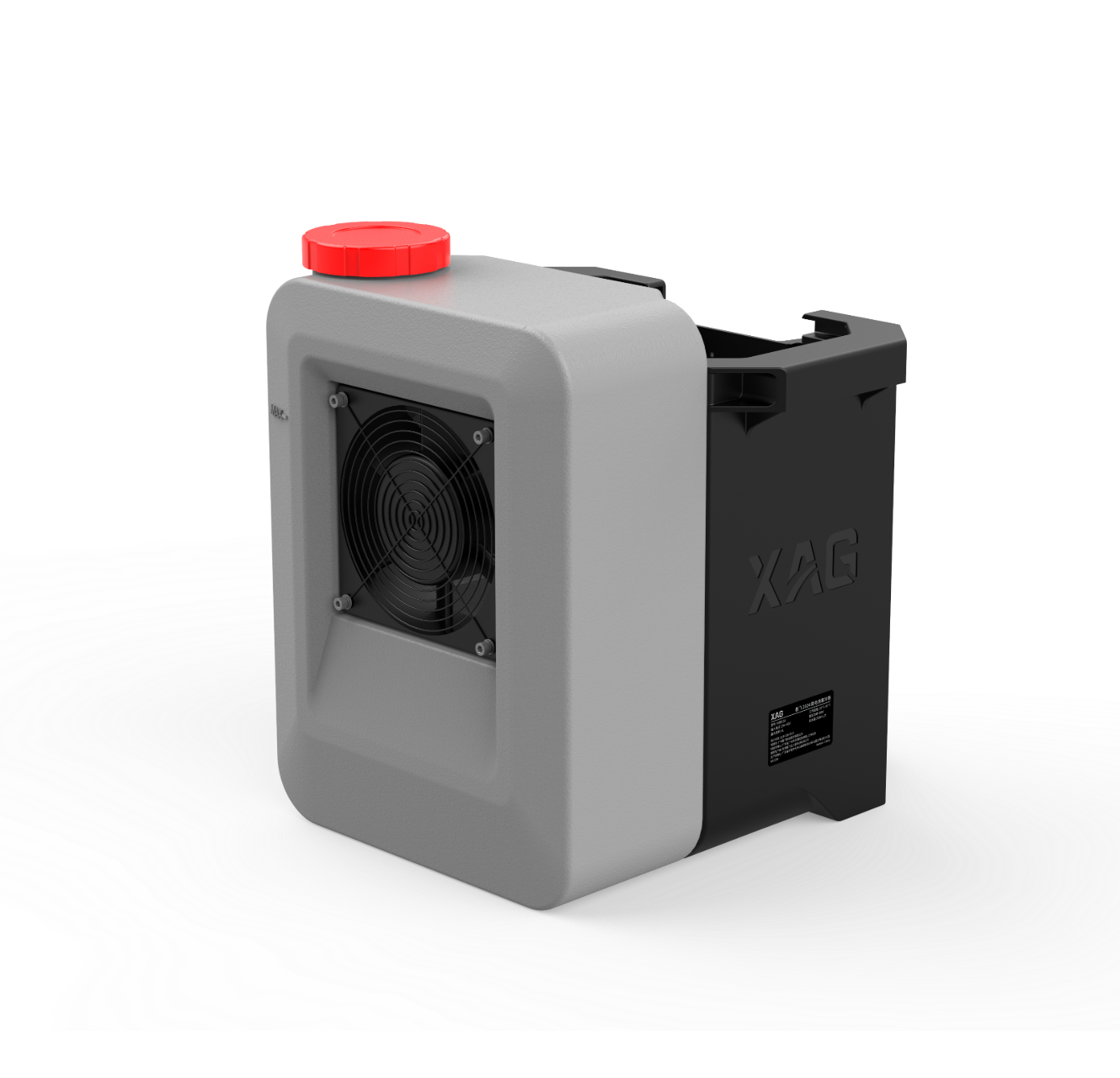

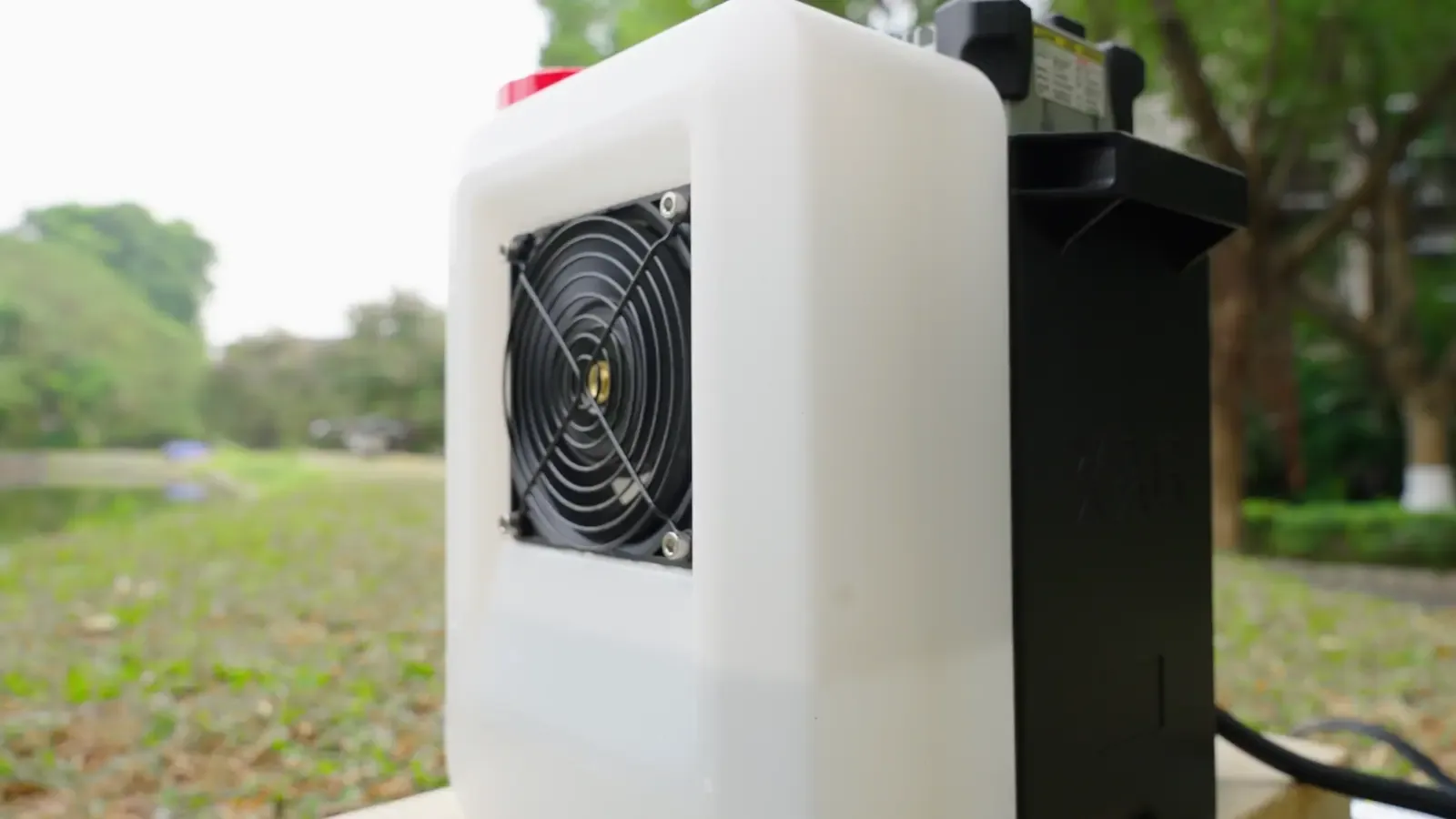

Cooling tower
6–8 hours per water fill

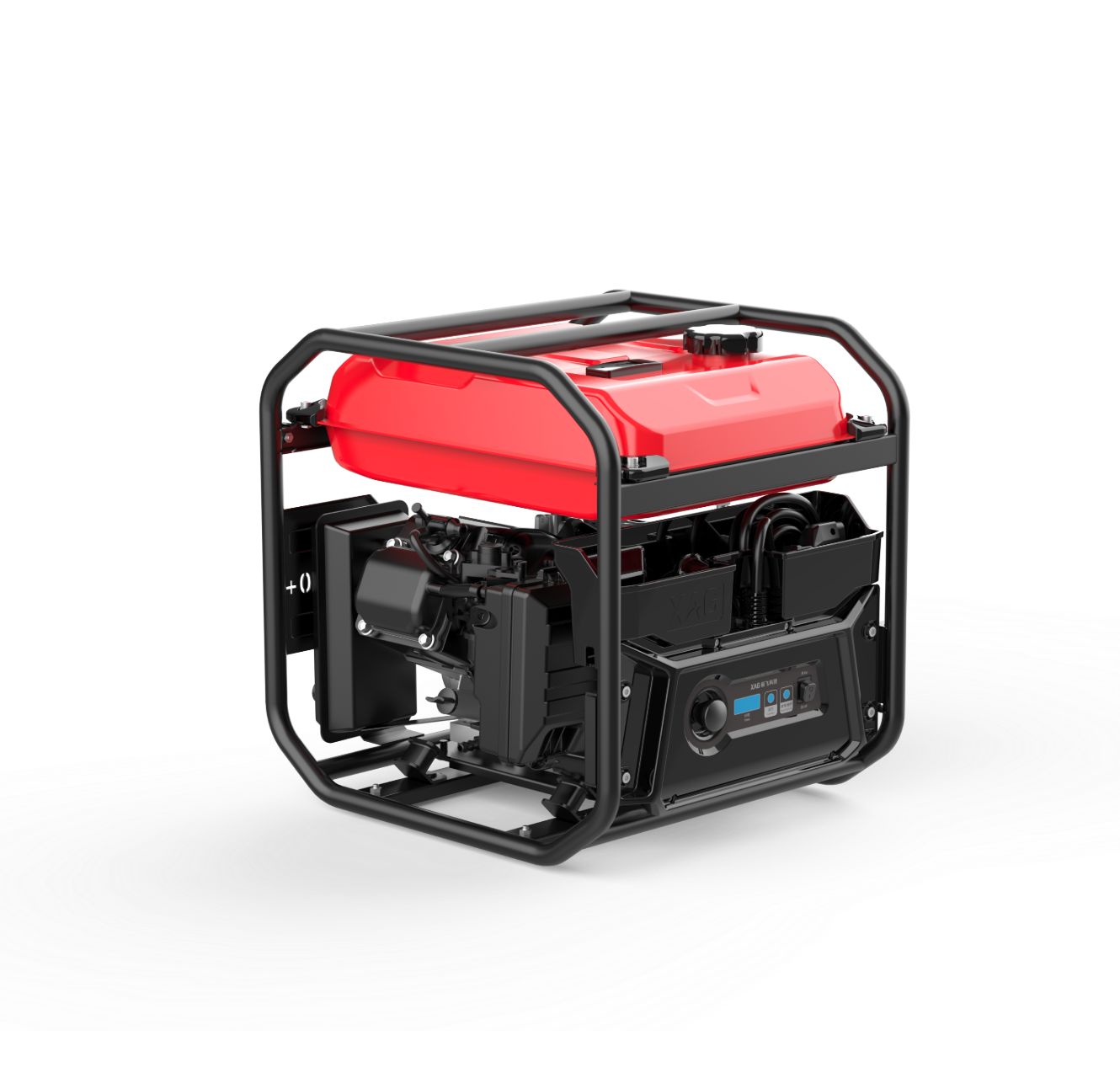

GC4000+
Fuel-powered field charging

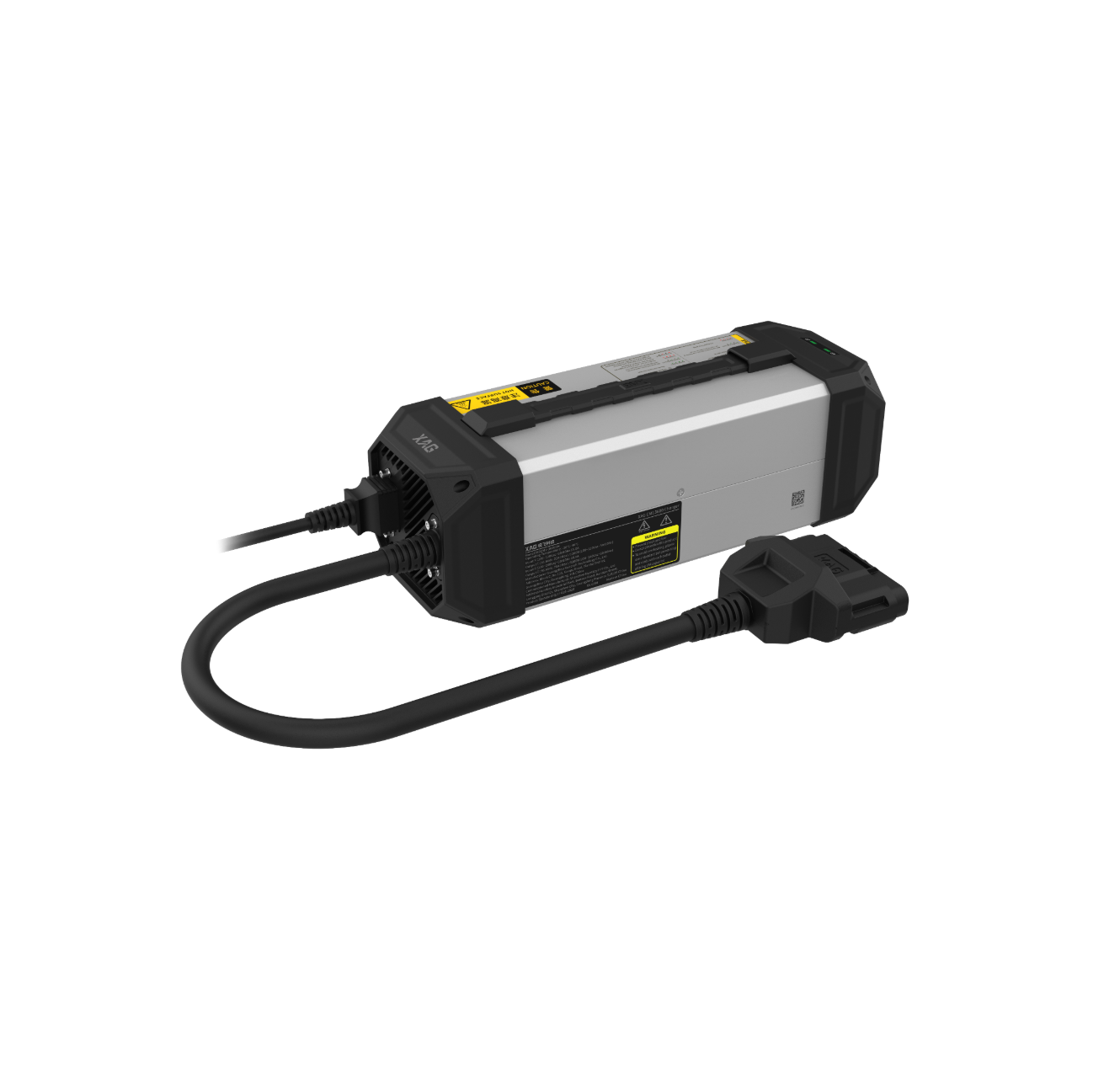

CM13600BH
3.4 kW · 30–95% in ~11 min

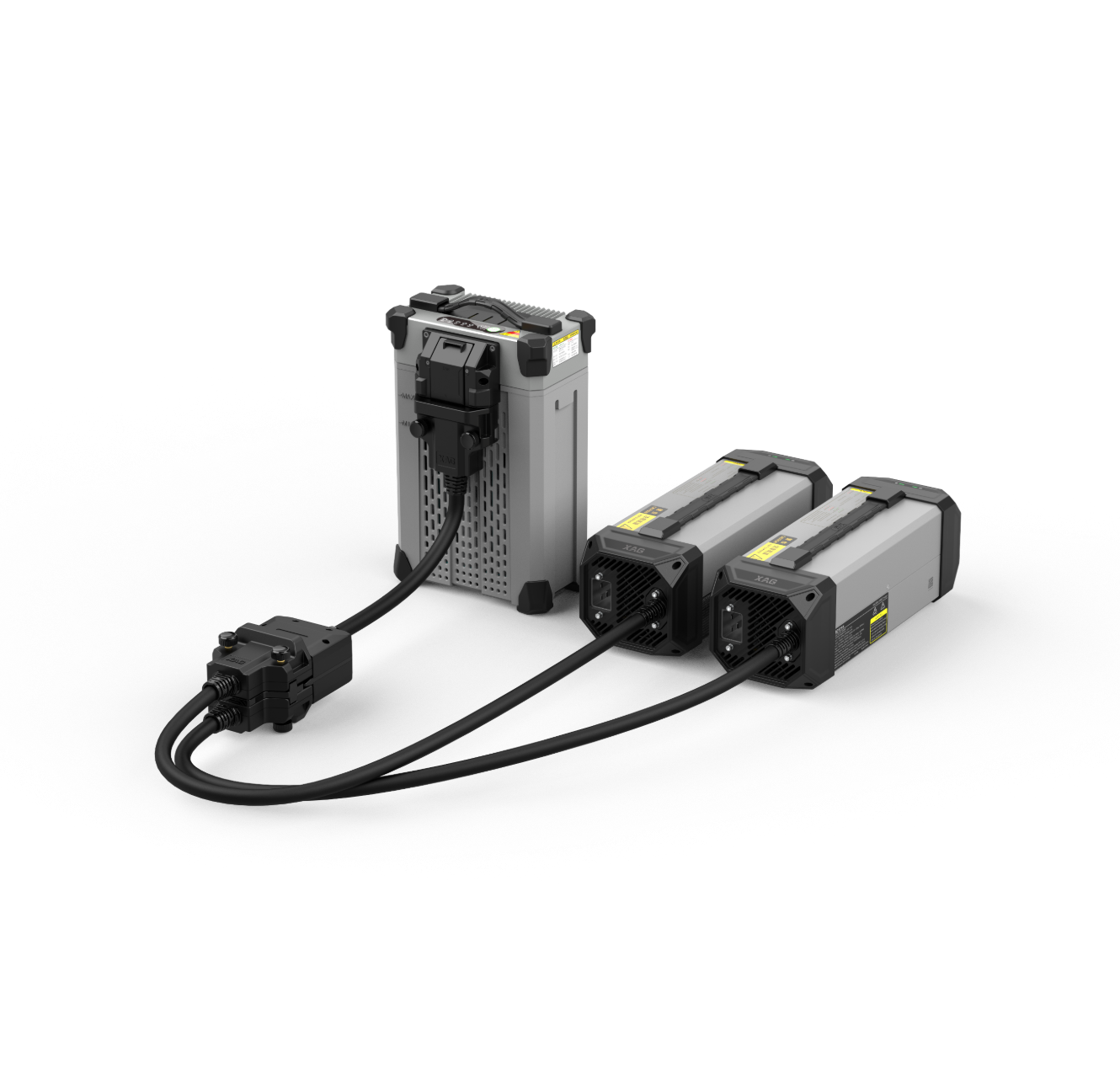

Parallel kit
6.8 kW · 30–90% in ~6 min
Need more payload, flow, speed, or lifting?
The P150 Max moves the platform to an 80 kg payload, 80 L liquid tank, 32 L/min dual-pump spray flow, 20 m/s maximum speed, and adds RevoSling material transport.
Configure the aircraft around the mission.
SkyFlow will review the crop, target, application volume, material, terrain, mapping, power, transport, crew model, compliance path, and current Canadian availability.
P150 operating figures.
Verified aircraft, application, control, connectivity, mapping, and power-system specifications for the XAG P150.
Aircraft
- Maximum task payload
- 70 kg; varies with task system and operating conditions
- Maximum flight speed
- 59.1 ft/s (18 m/s), subject to local requirements and conditions
- Protection rating
- IPX6K
- Task systems
- RevoSpray 4, RevoCast 4, and RealTerra 3
- Folded volume reduction
- 20%
RevoSpray 4
- Smart liquid tank
- 70 L
- Maximum flow rate
- 30 L/min
- Effective spray width
- 16.4–32.8 ft (5–10 m)
- Droplet range
- 60–500 μm
- Optional nozzle configuration
- Four centrifugal nozzles
- Application capacity
- Up to 495 L/ha at 2.5 m/s and 4 m width; up to 102 L/ha at 7 m/s and 7 m width
RevoCast 4
- Granule container
- 115 L
- Maximum spread rate
- 280 kg/min with compound fertilizer; 220 kg/min with urea
- Effective spread width
- 26.2 ft (8 m)
- Maximum spreading flight speed
- 45.3 ft/s (13.8 m/s)
- Materials
- Fertilizer, seed, aquaculture feed, and dry powder, subject to feeder and material fit
Mapping and perception
- Mapping system
- XAG RealTerra 3
- Survey area
- Up to 32.9 ac (13.3 ha) in one flight
- Radar sensing range
- 4.9–328 ft (1.5–100 m), target dependent
- Terrain workflow
- Real-time 3D terrain mapping without a preloaded map
- Takeoff and landing assistance
- Downward visual terrain recording and anomaly-triggered hover
Control and connectivity
- ACS4 endurance
- Up to 12 hours
- SRC4 display
- 6-inch 2K screen
- SRC4 endurance
- Up to 5 hours
- SRC4 control range
- Up to 1.2 mi (2 km), open and unobstructed
- DL1 Wi-Fi repeating
- Up to 1.2 mi (2 km)
- XRTK6 Pro Wi-Fi repeating
- Up to 0.9 mi (1.5 km)
Power system
- Battery
- B13970S Smart Supercharge Battery
- Battery capacity
- 975 Wh
- Cycle life
- 1500 cycles
- CM13600BH output
- 3.4 kW
- CM13600BH laboratory charge
- 30% to 95% in about 11 minutes
- Parallel kit laboratory charge
- 30% to 90% in about 6 minutes
Before evaluating a P150.
How does the P150 differ from the P150 Max?+
The P150 is the 70 kg generation with RevoSpray 4, RevoCast 4, a 70 L liquid tank, 30 L/min maximum spray flow, and 18 m/s maximum flight speed. The P150 Max increases task payload to 80 kg, liquid tank to 80 L, dual-pump flow to 32 L/min, speed to 20 m/s, and adds the RevoSling lifting workflow.
Is the XAG P150 currently available in Canada?+
This is an inquiry-led product page, not a live inventory statement. SkyFlow will confirm the current Canadian configuration, supported accessories, compliance path, training, and delivery status for the intended operation.
Can the P150 spray orchards and open fields?+
XAG positions RevoSpray 4 for both open-field and orchard crop protection. Suitability still depends on the approved product label, target, canopy, terrain, weather, droplet setting, rate, route, and applicable Canadian requirements.
Does the P150 automatically avoid every obstacle?+
No. The radar sensing range is 1.5–100 m. Detection and terrain mapping assist the operator but do not replace route planning or active flight supervision.
Can one operator control two P150 aircraft?+
XAG One supports a two-aircraft swarm workflow. Use in a Canadian operation depends on the aircraft configuration, operating certificate, local requirements, site controls, crew plan, and supported software.
Can SkyFlow compare the P150 and P150 Max for an operation?+
Yes. The comparison should cover required payload, liquid volume, flow, material, speed, mapping, lifting needs, power logistics, transport, support, compliance, and lifecycle cost rather than selecting from one headline specification.
Bring the mission, not just a payload number.
Share the crop, acreage, target rate, refill plan, granular material, terrain, mapping needs, crew model, and power source. SkyFlow will evaluate the complete operating system around the work.
