Genuine Quad Fish-Eye Vision System spare part for the DJI AGRAS T100 agricultural drone.

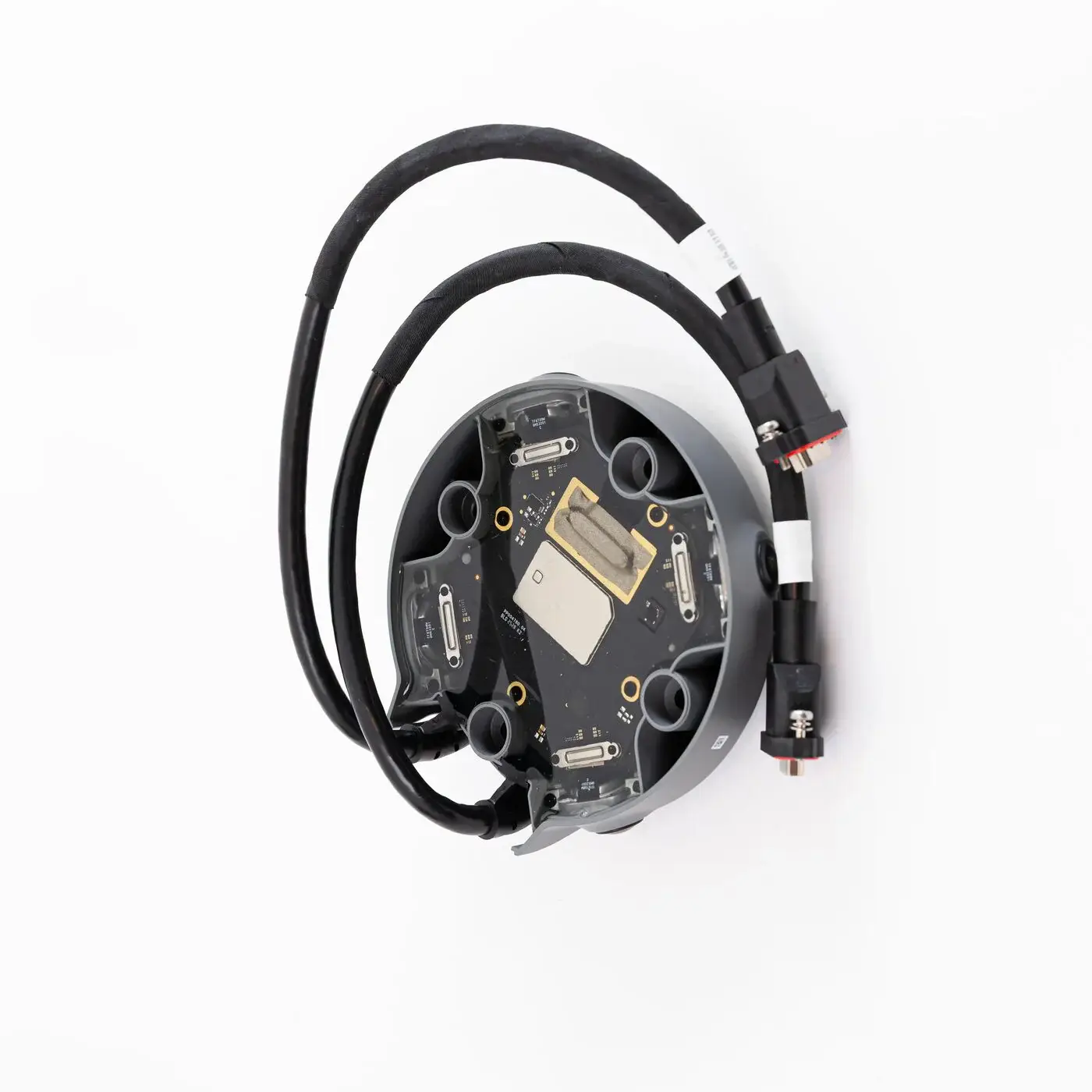

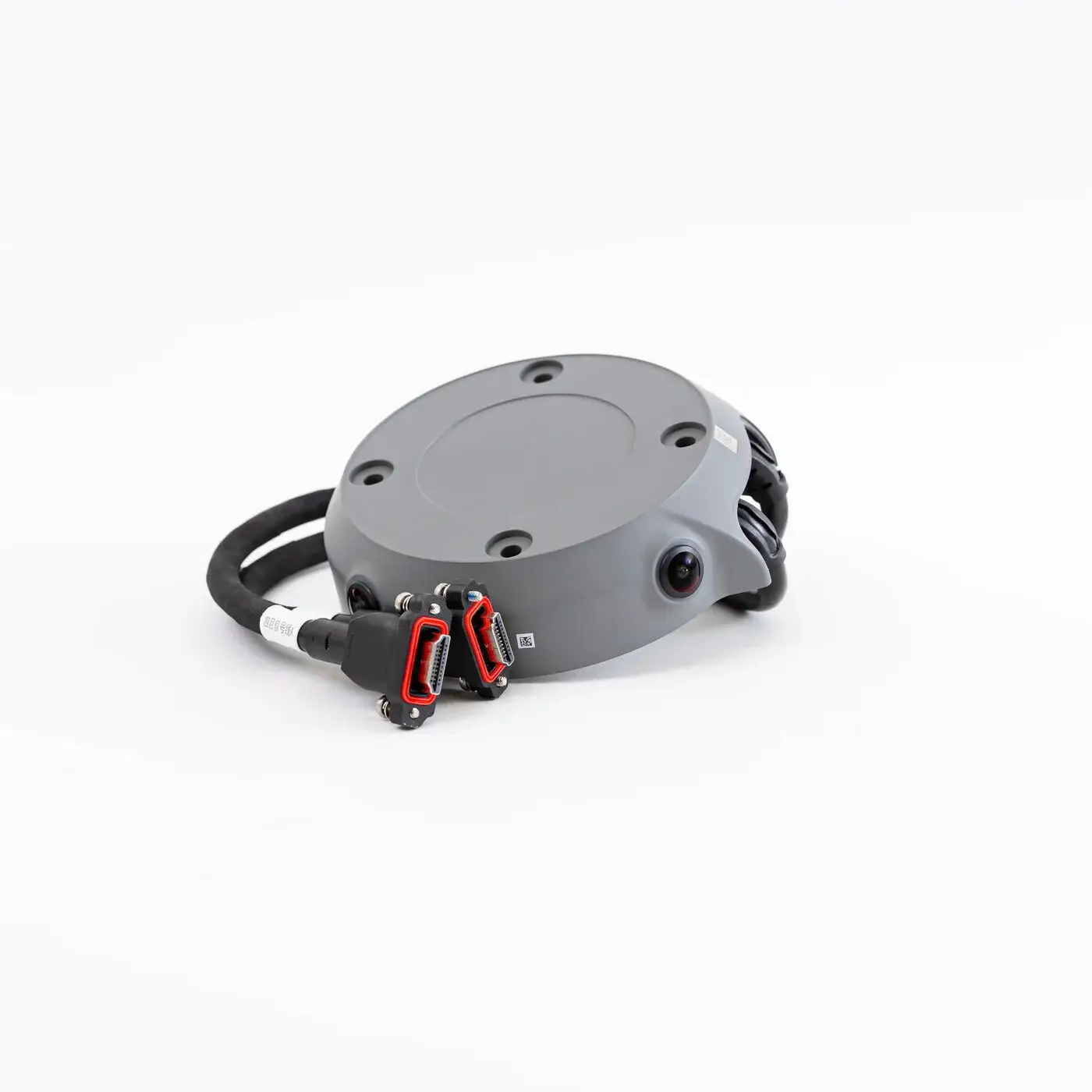

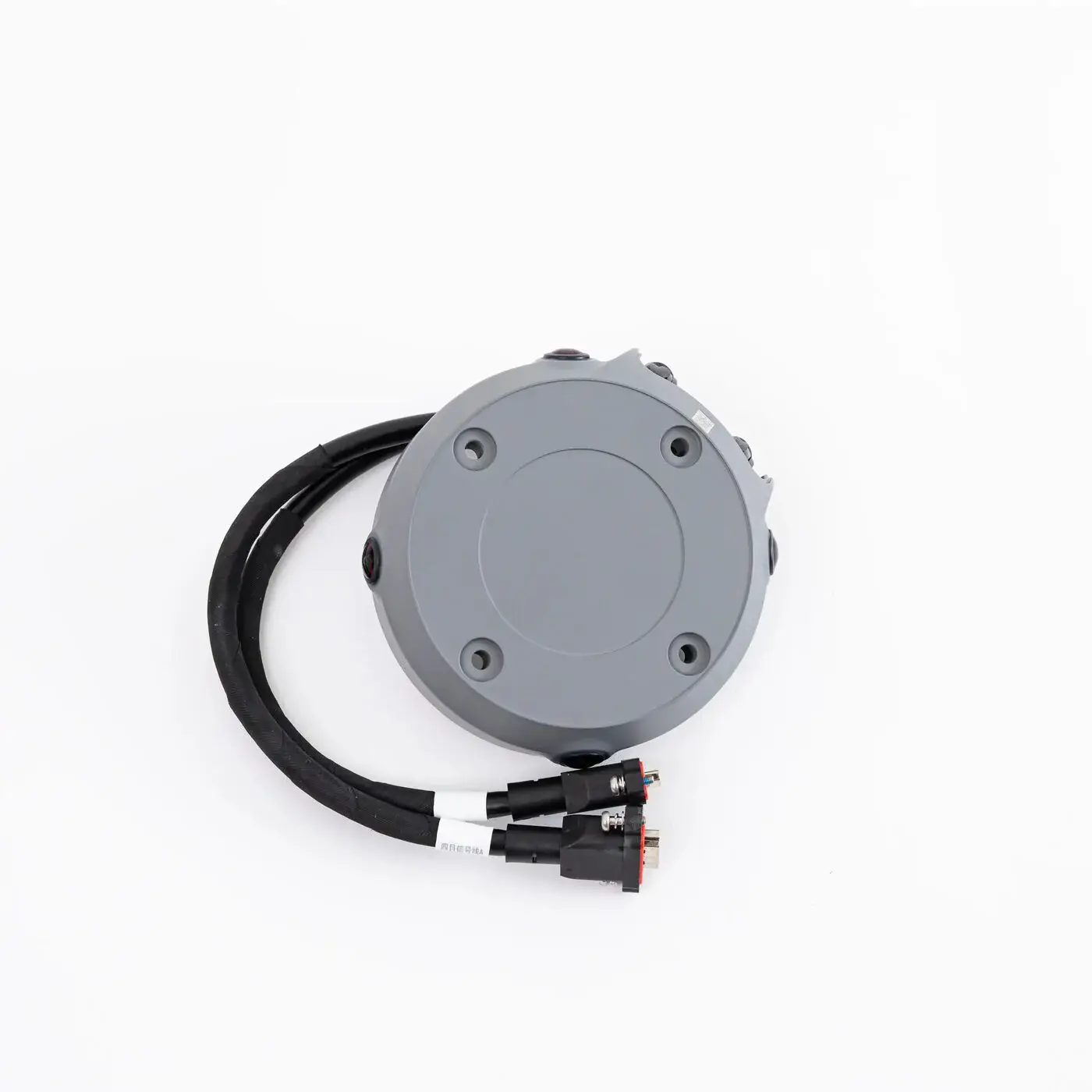

DJI AGRAS T100 Quad Fish-Eye Vision System
The DJI AGRAS T100 Quad Fish-Eye Vision System is the multi-direction vision sensing module used by the aircraft to help observe its surroundings during flight. Unlike the FPV module, which mainly gives the pilot a live camera view, the quad fish-eye vision system is part of the drone’s obstacle awareness and visual sensing system. It helps the aircraft “see” around itself from multiple directions so it can better understand nearby objects, field edges, trees, poles, structures, and terrain changes.
This system uses wide-angle fish-eye vision sensors to provide broad visual coverage around the aircraft. On the Agras T100, the quad-vision system works together with the FPV camera, radar, and other safety sensors to support safer operation during spraying, spreading, lifting, takeoff, landing, and close-range maneuvering. It is especially important when working in orchards, near obstacles, along field boundaries, or in complex agricultural environments where the drone needs strong situational awareness.
This part is the sensing module itself, not just the outer lens cover. If the original quad fish-eye vision system is damaged, contaminated, offline, or reporting vision sensor errors, the aircraft may lose part of its visual obstacle-awareness capability. Symptoms may include vision system warnings, reduced obstacle detection performance, abnormal sensing behavior, or visible damage to the sensor housing/lenses after impact or heavy field use.
Use this replacement module when the T100’s quad-vision sensing hardware is damaged or malfunctioning. Restoring this system helps maintain the aircraft’s multi-direction visual awareness and supports safer, more reliable field operation.
Key Features
Compatibility
Compatible with: DJI AGRAS T100
Part Number / SKU
BC.AG.SS001093
When to Replace This Part
Replace the quad fish-eye vision system if the aircraft shows vision sensor errors, abnormal obstacle detection, no sensor response, physical lens/module damage, chemical contamination, water damage, or impact damage around the vision sensor area. Installation should be completed by a qualified DJI Agras technician or experienced agricultural drone repair professional.
