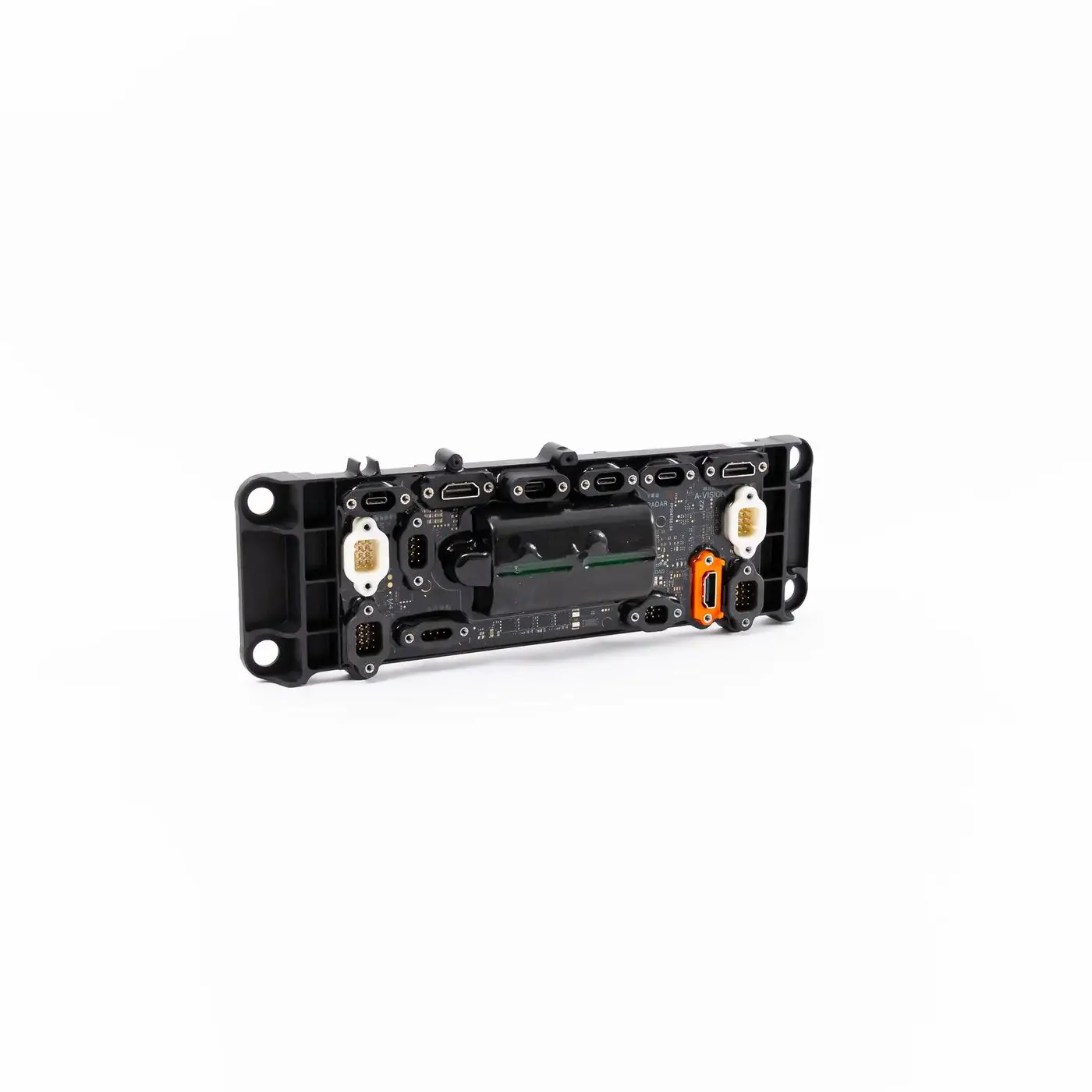

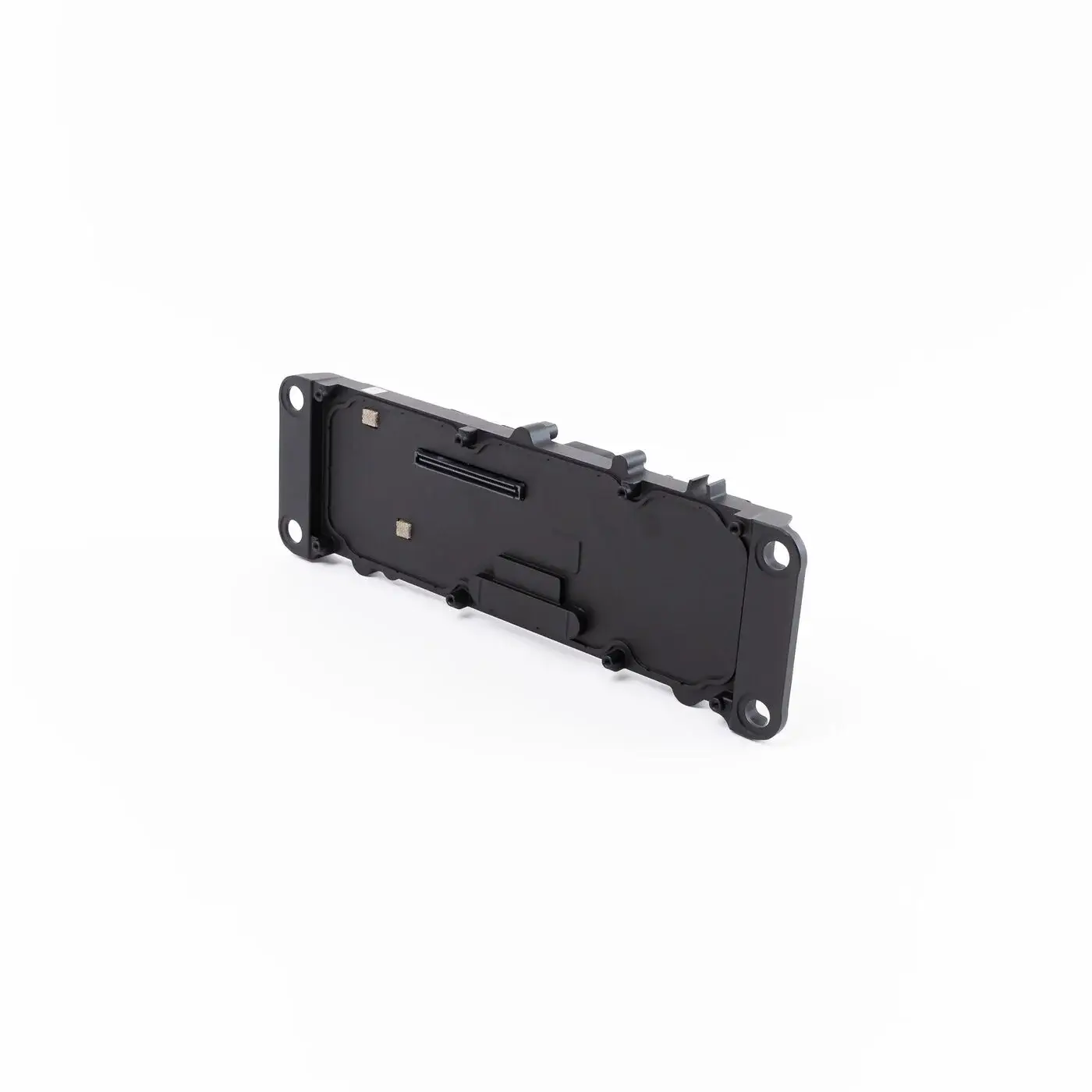

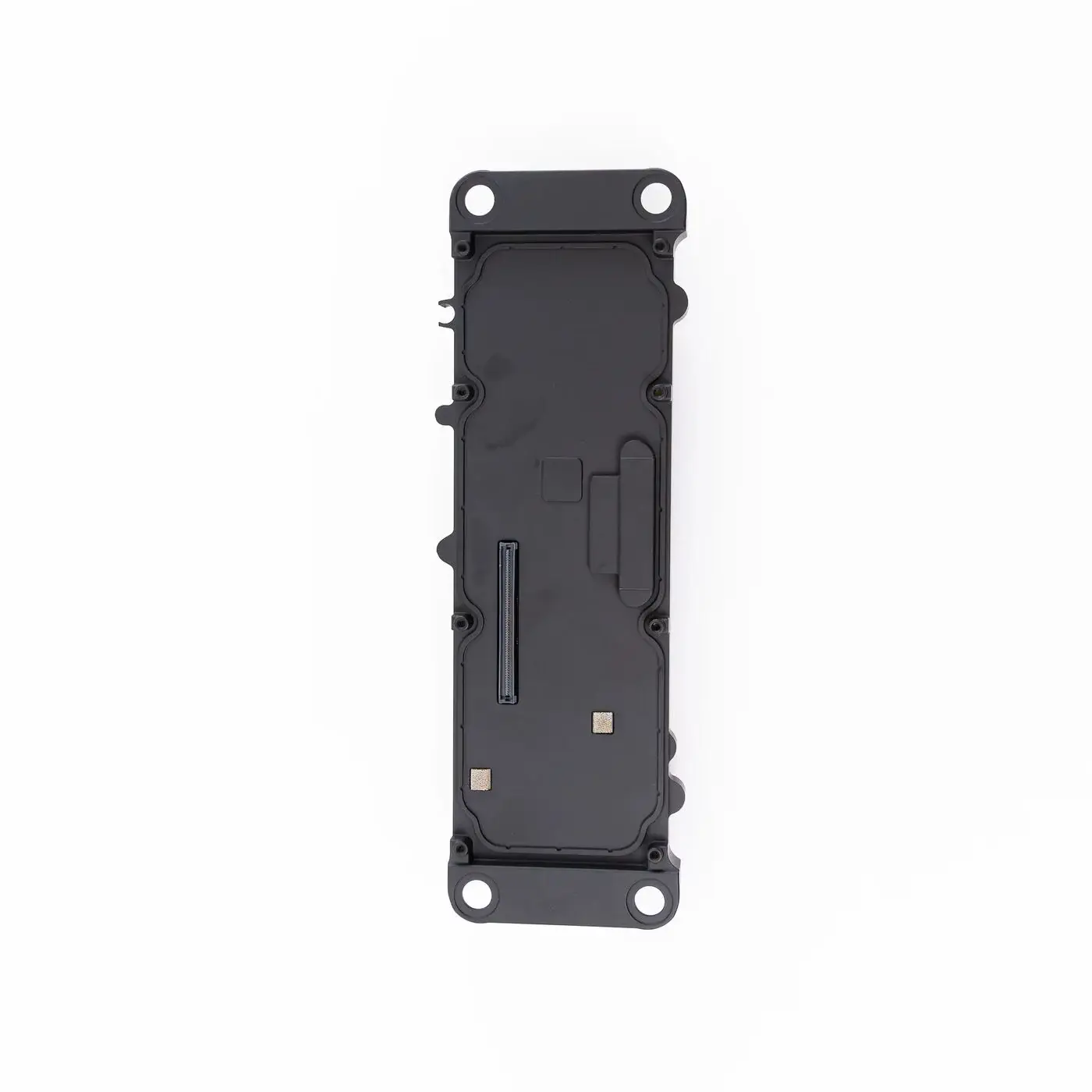

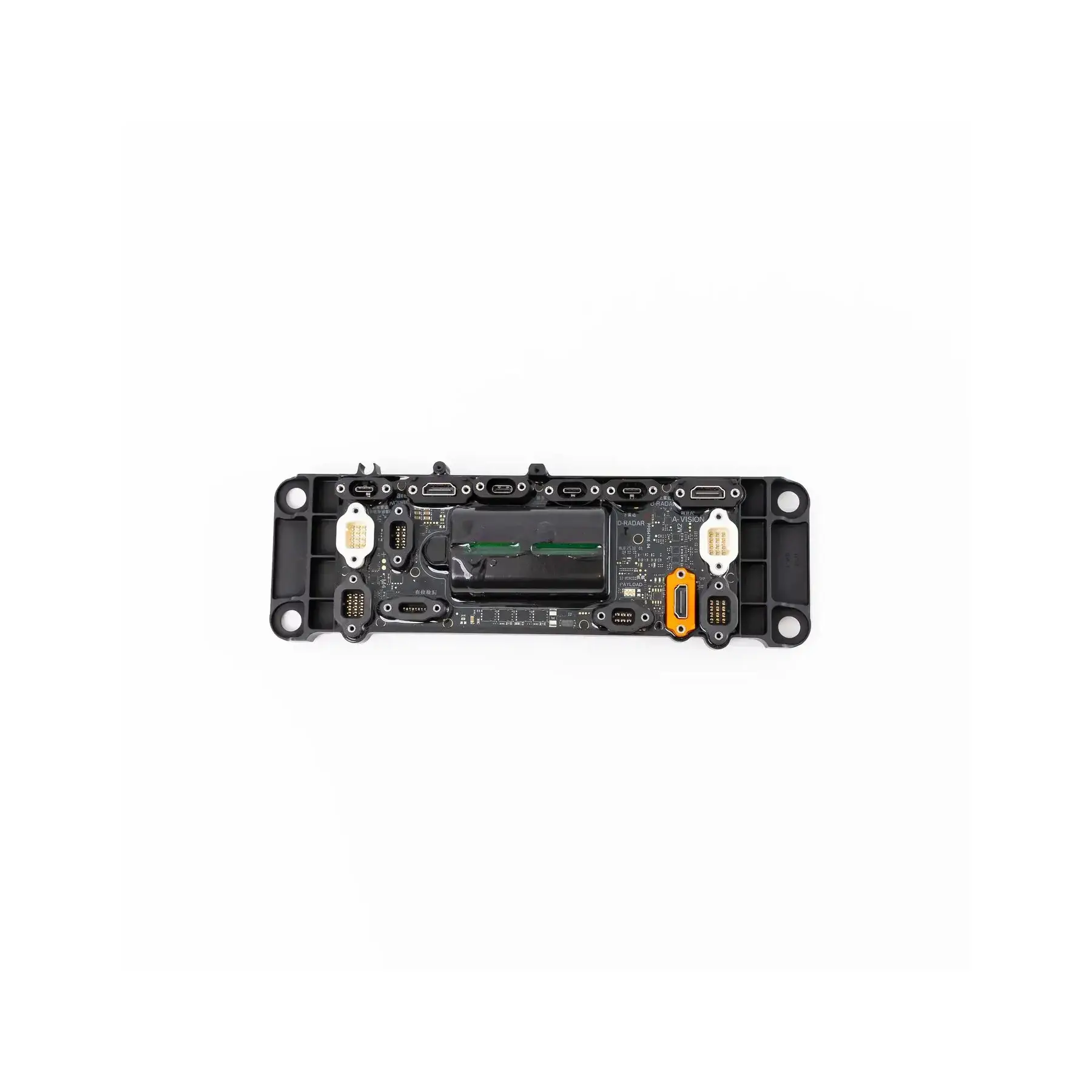

DJI AGRAS T100 Cable Distribution Board (CDB) Module
The DJI AGRAS T100 Cable Distribution Board (CDB) Module is an internal electrical routing board used inside the T100 airframe. Its main job is to organize and distribute cable connections between the aircraft’s major systems, helping onboard modules communicate and receive the proper electrical connection through the aircraft harness.
This part is not a battery, motor, ESC, radar module, or flight controller. It works more like the aircraft’s internal wiring hub. The CDB helps route connections between different aircraft systems such as sensors, lighting, payload electronics, spray-system components, and control modules. Instead of having every cable run separately across the aircraft, the cable distribution board provides a structured connection point for the T100’s internal wiring layout.
If the CDB module is damaged, corroded, loose, or internally faulty, the aircraft may show multiple connection-related problems at the same time. A sensor may stop responding, a light may fail, a payload may show communication errors, or a module may appear offline even though the module itself is still functional. Because many systems rely on this board for cable routing, CDB faults can sometimes look like several separate component failures.
Use this part when repairing internal wiring faults, cable distribution issues, module communication errors, corrosion, crash damage, water exposure, or abnormal startup-check problems on the DJI Agras T100. Replacing the Cable Distribution Board helps restore clean internal cable routing and stable communication between connected aircraft systems.
Key Features
Compatibility
Compatible with: DJI AGRAS T100
Part Number / SKU
BC.AG.SS001091
Possible variant: BC.AG.SS001091.01
When to Replace This Part
Replace the Cable Distribution Board module if the T100 shows multiple module communication errors, sensor connection faults, lighting connection issues, payload communication problems, intermittent system dropouts, startup-check failures, visible board damage, overheating marks, corrosion, water damage, or electrical failure after impact or repair work. Installation should be completed by a qualified DJI Agras technician or experienced agricultural drone repair professional. For safe and proper installation, ask SkyFlow Drone Spray Repair Engineers to inspect and replace this part. SkyFlow Drone Spray has one of the largest DJI Agras drone repair centers in North America, with 20+ Certified DJI Repair Engineers.
